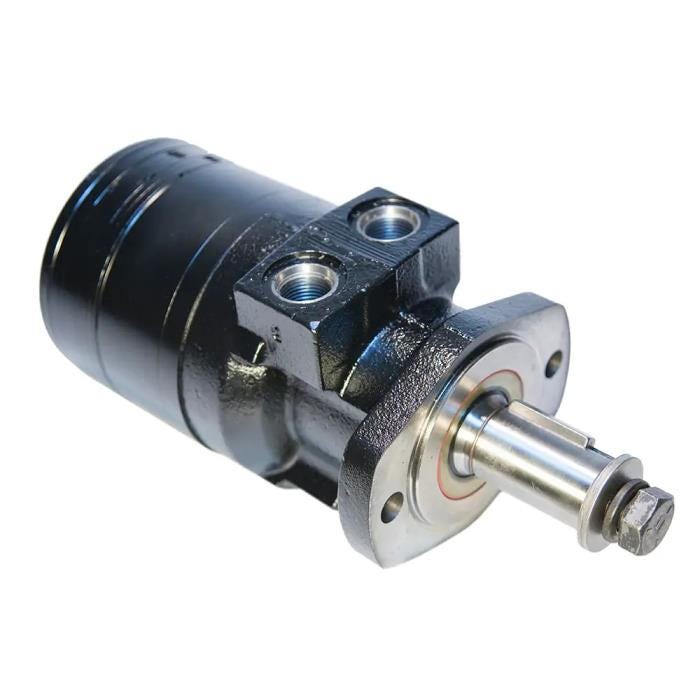

Low Speed High Torque Motors
Low-speed, high-torque (LSHT) motors deliver reliable, efficient power and performance for a wide variety of applications. Our industry-leading high-torque motors provide versatility from small, medium and large frame models. Our Fluid Power Specialists can assist you in selecting the right motor for your application requirements.
-
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0036AS100AAAA 2.2 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 932 $411.30 / each TB0045AS100AAAA 2.5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 805 $412.20 / each TB0045AS100AAAB 2.5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 805 $393.30 / each TB0050AP100AAAA 3 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 678 $413.10 / each TB0050AS100AAAA 3 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 678 $413.10 / each TB0065AP100AAAA 4 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 511 $414.90 / each TB0080AM100AAAA 5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) Manifold Mount 2750 409 $450.90 / each TB0080AS100AAAB 5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 409 $397.80 / each TB0100AP100AAAA 6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 454 $419.40 / each TB0100AS100AAAB 6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 454 $400.50 / each TB0130AM100AAAA 8 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) Manifold Mount 2750 430 $464.40 / each TB0130AM100AAAB 8 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) Manifold Mount 2750 430 $445.50 / each TB0130AS100AAAA 8 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 430 $430.20 / each TB0130AS100AAAB 8 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 430 $411.30 / each TB0165AS100AAAA 10 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 343 $450.00 / each TB0165AS100AAAB 10 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 343 $431.10 / each TB0195AS100AAAA 11.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 287 $482.40 / each TB0195AS100AAAB 11.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 287 $463.50 / each TB0230AP100AAAA 13.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 246 $495.90 / each TB0230AS100AAAB 13.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 246 $477.00 / each TB0260AS100AAAB 15.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 216 $490.50 / each TB0295AS100AAAA 17.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 191 $520.20 / each TB0295AS100AAAB 17.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 191 $501.30 / each TB0365AP100AAAA 22.6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 151 $576.90 / each TB0365AP100AAAB 22.6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 151 $558.00 / each -
TB Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount
TB Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0036FS100AAAA 2.2 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 932 $415.80 / each TB0050FP100AAAA 3 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 678 $417.60 / each TB0050FS100AAAB 3 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 678 $398.70 / each TB0080FS100AAAA 5 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 409 $421.20 / each TB0080FS100AAAB 5 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 409 $402.30 / each TB0100FP100AAAA 6 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 454 $423.90 / each TB0130FP100AAAB 8 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 430 $415.80 / each TB0165FM100AAAB 10 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) Manifold Mount 2750 343 $469.80 / each TB0195FM100AAAA 11.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) Manifold Mount 2750 287 $521.10 / each TB0195FP100AAAA 11.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 287 $486.90 / each TB0195FS100AAAA 11.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 287 $486.90 / each TB0230FS100AAAA 13.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 246 $500.40 / each TB0230FS100AAAB 13.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 246 $481.50 / each TB0260FS100AAAB 15.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 216 $495.00 / each TB0330FP100AAAB 20 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 171 $533.70 / each TB0330FS100AAAA 20 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 171 $552.60 / each TB0330FS100AAAB 20 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 171 $533.70 / each TB0365FM100AAAB 22.6 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) Manifold Mount 2750 151 $596.70 / each TB0365FS100AAAA 22.6 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 151 $581.40 / each TB0390FP100AAAB 24 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) NPT -08 (1/2") 2750 143 $601.20 / each TB0390FS100AAAA 24 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 143 $620.10 / each TB0390FS100AAAB 24 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2750 143 $601.20 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0100AS130AAAA 6 cu.in 2-Bolt (SAE A) 1" Keyed Long SAE -10 (5/8") 2750 454 $419.40 / each TB0195AP130AAAB 11.9 cu.in 2-Bolt (SAE A) 1" Keyed Long NPT -08 (1/2") 2750 287 $463.50 / each TB0295AS130AAAA 17.9 cu.in 2-Bolt (SAE A) 1" Keyed Long SAE -10 (5/8") 2750 191 $520.20 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0100FP130AAAB 6 cu.in 4-Bolt Standard 1" Keyed Long NPT -08 (1/2") 2750 454 $405.00 / each TB0165FP130AAAB 10 cu.in 4-Bolt Standard 1" Keyed Long NPT -08 (1/2") 2750 343 $435.60 / each TB0195FP130AAAB 11.95 cu.in 4-Bolt Standard 1" Keyed Long NPT -08 (1/2") 2750 287 $468.00 / each TB0295FP130AAAB 17.9 cu.in 4-Bolt Standard 1" Keyed Long NPT -08 (1/2") 2750 191 $505.80 / each TB0295FS130AAAA 17.9 cu.in 4-Bolt Standard 1" Keyed Long SAE -10 (5/8") 2750 191 $524.70 / each TB0330FS130AAAA 20 cu.in 4-Bolt Standard 1" Keyed Long SAE -10 (5/8") 2750 171 $552.60 / each TB0365FS130AAAA 22.6 cu.in 4-Bolt Standard 1" Keyed Long SAE -10 (5/8") 2750 151 $581.40 / each -
TB Motor 1" with 0.405" Crosshole, 2 Bolt (SAE A) Mount
TB Motor 1" with 0.405" Crosshole, 2 Bolt (SAE A) Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0050AP090AAAB 3 cu.in 2-Bolt (SAE A) 1" with 0.405" Crosshole NPT -08 (1/2") 2750 678 $394.20 / each -
TB Motor 1" with 0.405" Crosshole, 4 Bolt Standard Mount
TB Motor 1" with 0.405" Crosshole, 4 Bolt Standard Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0050FM090AAAB 3 cu.in 4-Bolt Standard 1" with 0.405" Crosshole Manifold Mount 2750 678 $432.90 / each TB0050FP090AAAB 3 cu.in 4-Bolt Standard 1" with 0.405" Crosshole NPT -08 (1/2") 2750 678 $398.70 / each TB0050FS090AAAB 3 cu.in 4-Bolt Standard 1" with 0.405" Crosshole SAE -10 (5/8") 2750 678 $398.70 / each TB0100FM090AAAA 6 cu.in 4-Bolt Standard 1" with 0.405" Crosshole Manifold Mount 2750 454 $458.10 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0045AS110AAAB 2.5 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 805 $406.80 / each TB0065AS110AAAA 4 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 511 $428.40 / each TB0080AM110AAAB 5 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) Manifold Mount 2750 409 $445.50 / each TB0080AS110AAAA 5 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 409 $430.20 / each TB0100AM110AAAB 6 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) Manifold Mount 2750 454 $448.20 / each TB0100AS110AAAA 6 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 454 $432.90 / each TB0165AM110AAAB 10 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) Manifold Mount 2750 343 $478.80 / each TB0195AM110AAAA 11.9 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) Manifold Mount 2750 287 $530.10 / each TB0230AS110AAAB 13.9 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 246 $490.50 / each TB0330AS110AAAB 20 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 171 $542.70 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TB0080FS110AAAA 5 cu.in 4-Bolt Standard 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 409 $434.70 / each TB0390FS110AAAA 24 cu.in 4-Bolt Standard 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 143 $633.60 / each TB0390FS110AAAB 24 cu.in 4-Bolt Standard 1"-6B Spline (SAE B-B) SAE -10 (5/8") 2750 143 $614.70 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TE0036AS100AAAB 2.2 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 1141 $593.10 / each TE0045AS100AAAB 2.5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 1024 $594.00 / each TE0065AP100AAAA 4 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2900 877 $625.50 / each TE0065AS100AAAB 4 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 877 $606.60 / each TE0080AM100AAAA 5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) Manifold Mount 2900 695 $662.40 / each TE0080AS100AAAA 5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 695 $628.20 / each TE0100AM100AAAA 6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) Manifold Mount 2900 582 $678.60 / each TE0100AS100AAAA 6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 582 $644.40 / each TE0165AS100AAAB 10 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 348 $678.60 / each TE0230AP100AAAA 13.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) NPT -08 (1/2") 2900 328 $767.70 / each TE0365AS100AAAA 22.6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 203 $889.20 / each -
TE Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount
TE Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TE0065FS100AAAA 4 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 877 $630.00 / each TE0100FS100AAAA 6 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 582 $648.90 / each TE0165FS100AAAA 10 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 348 $702.00 / each TE0195FS100AAAB 11.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 292 $729.00 / each TE0230FM100AAAB 13.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) Manifold Mount 2900 328 $787.50 / each TE0295FS100AAAA 17.9 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 256 $810.90 / each TE0330FS100AAAA 20 cu.in 4-Bolt Standard 1" Keyed (SAE B-B) SAE -10 (5/8") 2900 228 $850.50 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TF0080AB020AAAA 4.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 693 $986.40 / each TF0080AS020AAAA 4.9 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 693 $869.40 / each TF0100AS010AAAB 6.1 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 749 $836.10 / each TF0100AS020AAAA 6.1 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 749 $870.30 / each TF0100AS020AAAB 6.1 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 749 $836.10 / each TF0170AS010AAAB 10.3 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 444 $870.30 / each TF0170AS020AAAB 10.3 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 444 $870.30 / each TF0195AS010AAAA 12 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 381 $907.20 / each TF0195AS010AAAB 12 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 381 $873.00 / each TF0240AB020AAAB 14.5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 394 $1,007.10 / each TF0240AS010AAAB 14.5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 394 $890.10 / each TF0240AS020AAAB 14.5 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 394 $890.10 / each TF0280AS010AAAA 17.1 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 334 $932.40 / each TF0280AS010AAAB 17.1 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 334 $898.20 / each TF0360AS010AAAA 22.2 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 258 $980.10 / each TF0360AS010AAAB 22.2 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 258 $945.90 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TF0080BS020AAAA 4.9 cu.in 2-Bolt (SAE B) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 693 $869.40 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TF0100MS020AAAB 6.1 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 749 $840.60 / each TF0130MM010AAAB 7.8 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) Manifold Mount 4350 583 $963.00 / each TF0130MS020AAAB 7.8 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 583 $864.00 / each TF0140MS010AAAB 8.6 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 530 $873.00 / each TF0170MS010AAAA 10.3 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 444 $909.00 / each TF0195MS010AAAB 12 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 381 $877.50 / each TF0195MS020AAAA 12 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 381 $911.70 / each TF0195MS020AAAB 12 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 381 $877.50 / each TF0240MS020AAAB 14.5 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 394 $894.60 / each TF0280MS020AAAB 17.1 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 334 $902.70 / each TF0405MS010AAAA 24.7 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 231 $1,045.80 / each TF0475MS010AAAA 29.1 cu.in 4-Bolt Magneto 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 195 $1,097.10 / each -
TF Motor 1-1/4" Keyed (SAE C), 2 Bolt (SAE A) Mount
TF Motor 1-1/4" Keyed (SAE C), 2 Bolt (SAE A) Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TF0080AB030AAAA 4.9 cu.in 2-Bolt (SAE A) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 693 $986.40 / each TF0080AS030AAAA 4.9 cu.in 2-Bolt (SAE A) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 693 $869.40 / each TF0130AS030AAAA 7.8 cu.in 2-Bolt (SAE A) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 583 $893.70 / each TF0195AS030AAAA 12 cu.in 2-Bolt (SAE A) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 381 $907.20 / each TF0240AS030AAAB 14.5 cu.in 2-Bolt (SAE A) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 394 $890.10 / each TF0280AS030AAAA 17.1 cu.in 2-Bolt (SAE A) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 334 $932.40 / each TF0405AS030AAAB 24.7 cu.in 2-Bolt (SAE A) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 231 $1,007.10 / each -
TF Motor 1-1/4" Keyed (SAE C), 2 Bolt (SAE B) Mount
TF Motor 1-1/4" Keyed (SAE C), 2 Bolt (SAE B) Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TF0280BS030AAAB 17.1 cu.in 2-Bolt (SAE B) 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 334 $898.20 / each -
TF Motor 1-1/4" Keyed (SAE C), 4 Bolt Magneto Mount
TF Motor 1-1/4" Keyed (SAE C), 4 Bolt Magneto Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TF0100MS030AAAB 6.1 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 749 $840.60 / each TF0130MS030AAAA 7.8 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 583 $898.20 / each TF0195MS030AAAA 12 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 381 $911.70 / each TF0240MS030AAAA 14.5 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 439 $928.80 / each TF0280MS030AAAA 17.1 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 334 $936.90 / each TF0360MS030AAAA 22.2 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 258 $984.60 / each TF0360MS030AAAB 22.2 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 258 $950.40 / each TF0475MS030AAAB 29.1 cu.in 4-Bolt Magneto 1-1/4" Keyed (SAE C) SAE -10 (5/8") 4350 195 $1,062.90 / each -
TF Motor 1-1/4"-14T Spline (SAE C), 2 Bolt (SAE B) Mount
TF Motor 1-1/4"-14T Spline (SAE C), 2 Bolt (SAE B) Mount
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TF0100BS050AAAB 6.1 cu.in 2-Bolt (SAE B) 1-1/4"-14T Spline (SAE C) SAE -10 (5/8") 4350 749 $836.10 / each TF0170BS050AAAB 10.3 cu.in 2-Bolt (SAE B) 1-1/4"-14T Spline (SAE C) SAE -10 (5/8") 4350 444 $870.30 / each TF0195BS050AAAB 12 cu.in 2-Bolt (SAE B) 1-1/4"-14T Spline (SAE C) SAE -10 (5/8") 4350 381 $873.00 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TG0170AS020AAAA 10.3 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 554 $968.40 / each TG0335AS020AAAA 20.6 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 277 $1,026.00 / each TG0530AS020AAAB 32.3 cu.in 2-Bolt (SAE A) 1" Keyed (SAE B-B) SAE -10 (5/8") 4350 213 $1,260.90 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TG0170AS010AAAB 10.3 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 554 $934.20 / each TG0195AS010AAAA 12 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 477 $970.20 / each TG0195AS010AAAB 12 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 477 $936.00 / each TG0240AS010AAAA 14.5 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 393 $990.00 / each TG0240AS010AAAB 14.5 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 393 $955.80 / each TG0280AS010AAAA 17.1 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 334 $997.20 / each TG0280AS010AAAB 17.1 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 334 $963.00 / each TG0405AS010AAAA 24.7 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 232 $1,116.90 / each TG0405AS010AAAB 24.7 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 232 $1,082.70 / each TG0475AS010AAAB 29.1 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 237 $1,134.90 / each TG0530AS010AAAB 32.3 cu.in 2-Bolt (SAE A) 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 213 $1,260.90 / each -
Part # Displacement Mount Shaft Port Type and Size Pressure Rating (psi, Cont) Max Speed Rating (rpm, Cont) Web Price Add to Cart TG0170MS010AAAA 10.3 cu.in 4-Bolt Magneto 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 554 $972.90 / each TG0195MS010AAAA 11.9 cu.in 4-Bolt Magneto 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 477 $974.70 / each TG0280MS010AAAA 17.1 cu.in 4-Bolt Magneto 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 334 $1,001.70 / each TG0335MS010AAAA 20.6 cu.in 4-Bolt Magneto 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 277 $1,030.50 / each TG0405MS010AAAA 24.7 cu.in 4-Bolt Magneto 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 232 $1,121.40 / each TG0475MS010AAAA 29.1 cu.in 4-Bolt Magneto 1"-6B Spline (SAE B-B) SAE -10 (5/8") 4350 237 $1,173.60 / each
