TG Motor 1"-6B Spline, 4 Bolt Magneto Mount

TG0195MS010AAAA

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each

SKU

1009548

TG motor 11.9 cubic inch displacement 1"-6B Spline shaft with a 4 Bolt Magneto mount. SAE -10 (5/8") ports. 4350 psi maximum pressure rating with a 477 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

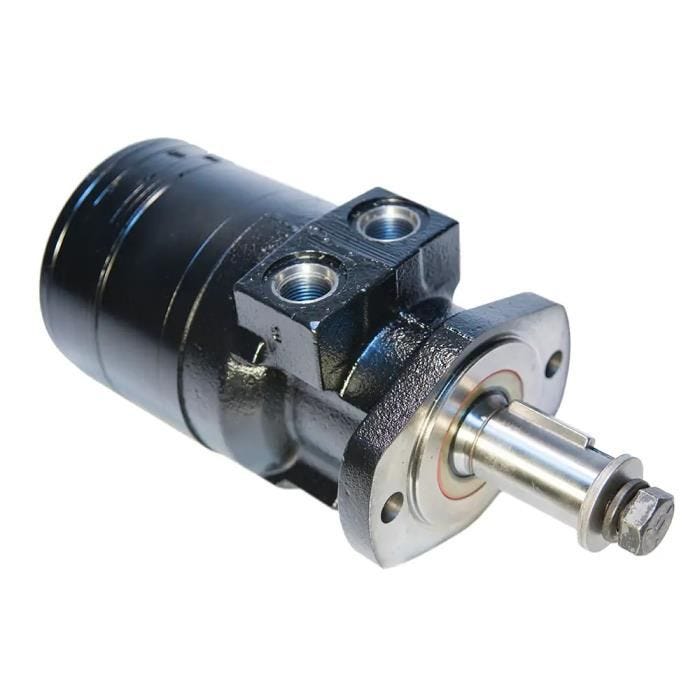

* Representative Image

Details

Part #	TG0195MS010AAAA
SKU	1009548
Length	9.9 in
Width	5.25 in
Height	5.033 in
Weight	32.5 lb
Product Series	TG
Displacement	11.9 cu.in
Displacement Range	10-15 cubic inch
Mount	4-Bolt Magneto
Shaft	1"-6B Spline (SAE B-B)
Port Type and Size	SAE -10 (5/8")
Pressure Rating (psi, Cont)	4350
Max Speed Rating (rpm, Cont)	477

Resources

Parker TG Series
