TB Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount

TB0390FP100AAAB

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each

SKU

1126891

TB motor 24 cubic inch displacement 1" Keyed (SAE B-B) shaft with a 4 Bolt Standard mount. NPT -08 (1/2") ports. 2750 psi maximum pressure rating with a 143 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

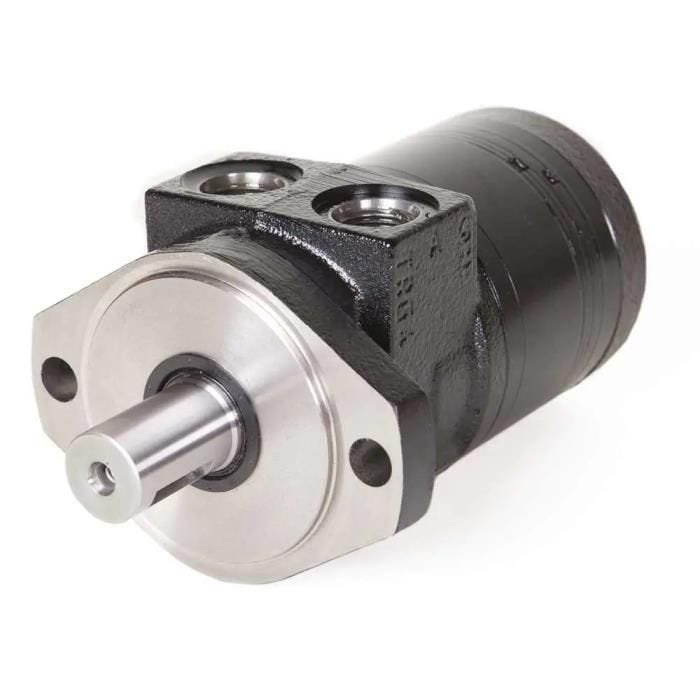

* Representative Image

Details

Part #	TB0390FP100AAAB
SKU	1126891
Length	10.35 in
Width	3.76 in
Height	3.84 in
Weight	18.5 lb
Product Series	TB
Displacement	24 cu.in
Displacement Range	20-30 cubic inch
Mount	4-Bolt Standard
Shaft	1" Keyed (SAE B-B)
Port Type and Size	NPT -08 (1/2")
Pressure Rating (psi, Cont)	2750
Max Speed Rating (rpm, Cont)	143

Resources

Parker TB Series
