TF Motor 1-1/4"-14T Spline (SAE C), 2 Bolt (SAE B) Mount

TF0170BS050AAAB

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1081441

TF motor 10.3 cubic inch displacement 1-1/4"-14T Spline (SAE C) shaft with a 2 Bolt (SAE B) mount. SAE -10 (5/8") ports. 4350 psi maximum pressure rating with a 444 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

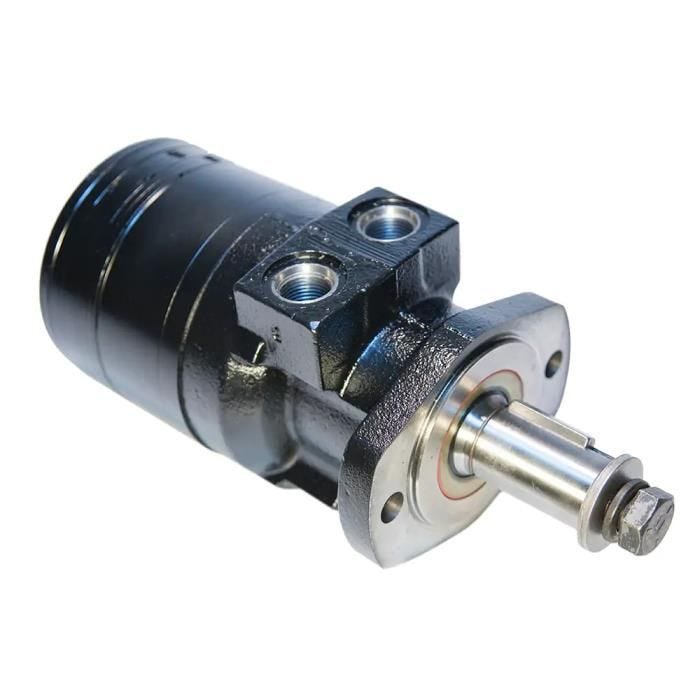

* Representative Image

Details

Part #	TF0170BS050AAAB
SKU	1081441
Length	9.26 in
Width	6.87 in
Height	5.02 in
Weight	32.7 lb
Product Series	TF
Displacement	10.3 cu.in
Displacement Range	10-15 cubic inch
Mount	2-Bolt (SAE B)
Shaft	1-1/4"-14T Spline (SAE C)
Port Type and Size	SAE -10 (5/8")
Pressure Rating (psi, Cont)	4350
Max Speed Rating (rpm, Cont)	444

Resources

Parker TF Series
