TB Motor 1" with 0.405" Crosshole, 4 Bolt Standard Mount

TB0100FM090AAAA

Shipping Availability

3

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
SKU
1091832
TB motor 6 cubic inch displacement 1" with 0.405" Crosshole shaft with a 4 Bolt Standard mount. Manifold Mount ports. 2750 psi maximum pressure rating with a 454 rpm maximum speed rating

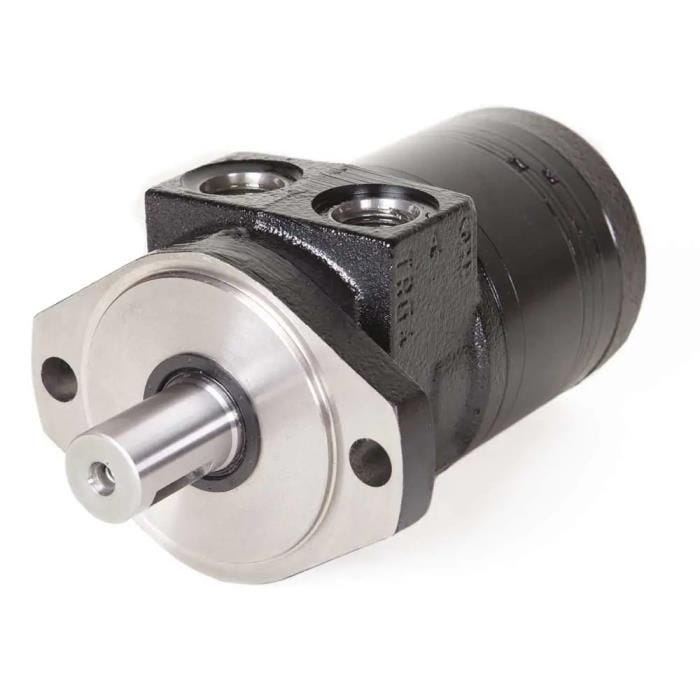

* Representative Image
Cluster TB Motor 1" with 0.405" Crosshole, 4 Bolt Standard Mount
Part # TB0100FM090AAAA
SKU 1091832
Length 8.02 in
Width 3.76 in
Height 3.84 in
Weight 13.4 lb
Product Series TB
Displacement 6 cu.in
Displacement Range 5-10 cubic inch
Mount 4-Bolt Standard
Shaft 1" with 0.405" Crosshole
Port Type and Size Manifold Mount
Pressure Rating (psi, Cont) 2750
Max Speed Rating (rpm, Cont) 454
