TF Motor 1" Keyed (SAE B-B), 2 Bolt (SAE A) Mount

TF0080AS020AAAA

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1110189

TF motor 4.9 cubic inch displacement 1" Keyed (SAE B-B) shaft with a 2 Bolt (SAE A) mount. SAE -10 (5/8") ports. 4350 psi maximum pressure rating with a 693 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

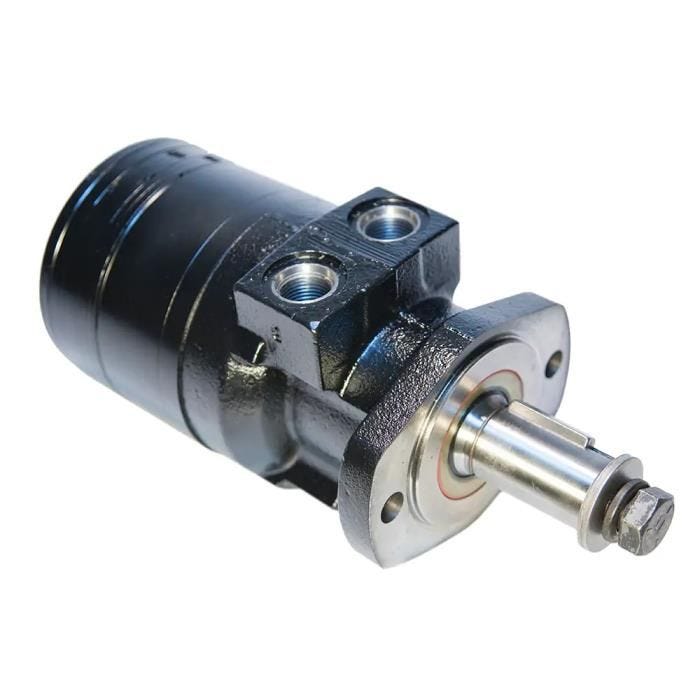

* Representative Image

Details

Part #	TF0080AS020AAAA
SKU	1110189
Length	9.47 in
Width	5.25 in
Height	5.033 in
Weight	29.9 lb
Product Series	TF
Displacement	4.9 cu.in
Displacement Range	0-5 cubic inch
Mount	2-Bolt (SAE A)
Shaft	1" Keyed (SAE B-B)
Port Type and Size	SAE -10 (5/8")
Pressure Rating (psi, Cont)	4350
Max Speed Rating (rpm, Cont)	693

Resources

Parker TF Series
