TB Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount

TB0230FS100AAAA

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1056407

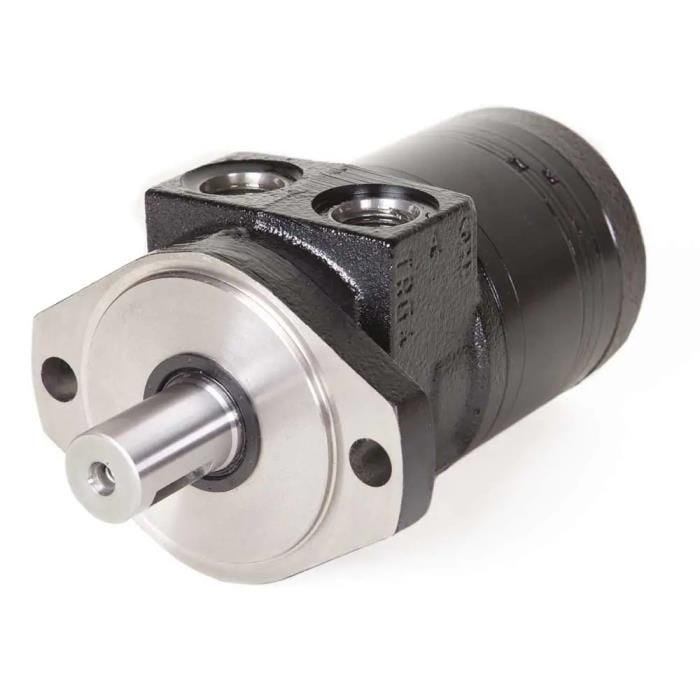

TB motor 13.9 cubic inch displacement 1" Keyed (SAE B-B) shaft with a 4 Bolt Standard mount. SAE -10 (5/8") ports. 2750 psi maximum pressure rating with a 246 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

* Representative Image

Details

Part #	TB0230FS100AAAA
SKU	1056407
Length	9.13 in
Width	3.76 in
Height	3.84 in
Weight	15.8 lb
Product Series	TB
Displacement	13.9 cu.in
Displacement Range	10-15 cubic inch
Mount	4-Bolt Standard
Shaft	1" Keyed (SAE B-B)
Port Type and Size	SAE -10 (5/8")
Pressure Rating (psi, Cont)	2750
Max Speed Rating (rpm, Cont)	246

Resources

Parker TB Series
