TG Motor 1"-6B Spline, 2 Bolt (SAE A) Mount

TG0195AS010AAAA

Shipping Availability

3

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
SKU
1164319
TG motor 12 cubic inch displacement 1"-6B Spline shaft with a 2 Bolt (SAE A) mount. SAE -10 (5/8") ports. 4350 psi maximum pressure rating with a 477 rpm maximum speed rating

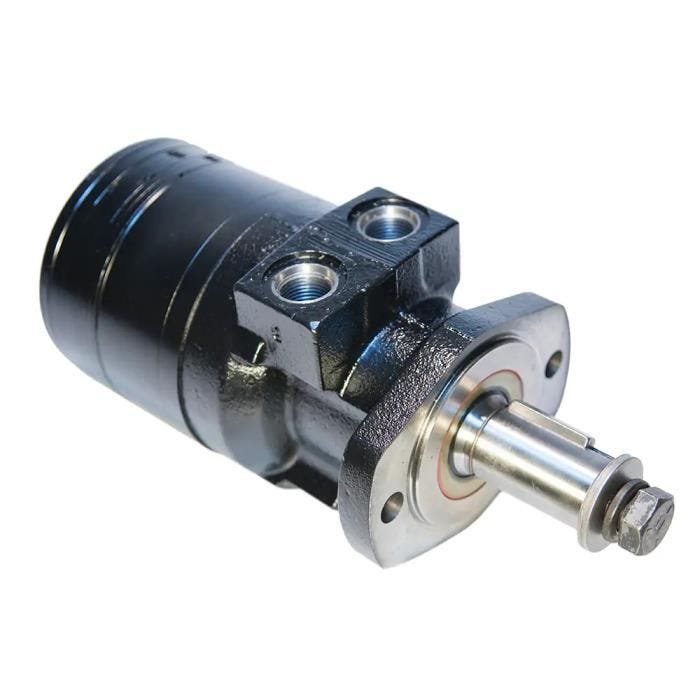

* Representative Image
Cluster TG Motor 1"-6B Spline, 2 Bolt (SAE A) Mount
Part # TG0195AS010AAAA
SKU 1164319
Length 9.9 in
Width 5.25 in
Height 5.033 in
Weight 32.5 lb
Product Series TG
Displacement 12 cu.in
Displacement Range 10-15 cubic inch
Mount 2-Bolt (SAE A)
Shaft 1"-6B Spline (SAE B-B)
Port Type and Size SAE -10 (5/8")
Pressure Rating (psi, Cont) 4350
Max Speed Rating (rpm, Cont) 477
