TB Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount

TB0390FS100AAAA

Shipping Availability

3

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
SKU
1181710
TB motor 24 cubic inch displacement 1" Keyed (SAE B-B) shaft with a 4 Bolt Standard mount. SAE -10 (5/8") ports. 2750 psi maximum pressure rating with a 143 rpm maximum speed rating

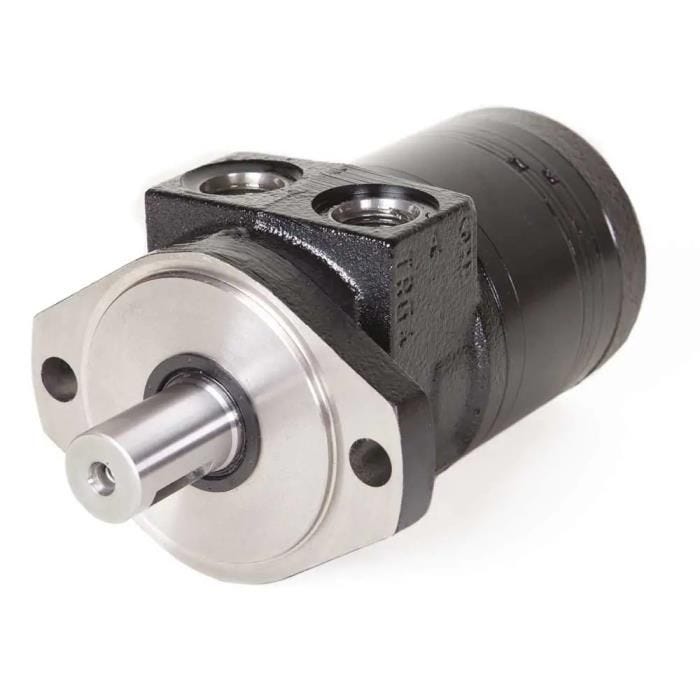

* Representative Image
Cluster TB Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount
Part # TB0390FS100AAAA
SKU 1181710
Length 10.35 in
Width 3.76 in
Height 3.84 in
Weight 18.5 lb
Product Series TB
Displacement 24 cu.in
Displacement Range 20-30 cubic inch
Mount 4-Bolt Standard
Shaft 1" Keyed (SAE B-B)
Port Type and Size SAE -10 (5/8")
Pressure Rating (psi, Cont) 2750
Max Speed Rating (rpm, Cont) 143
