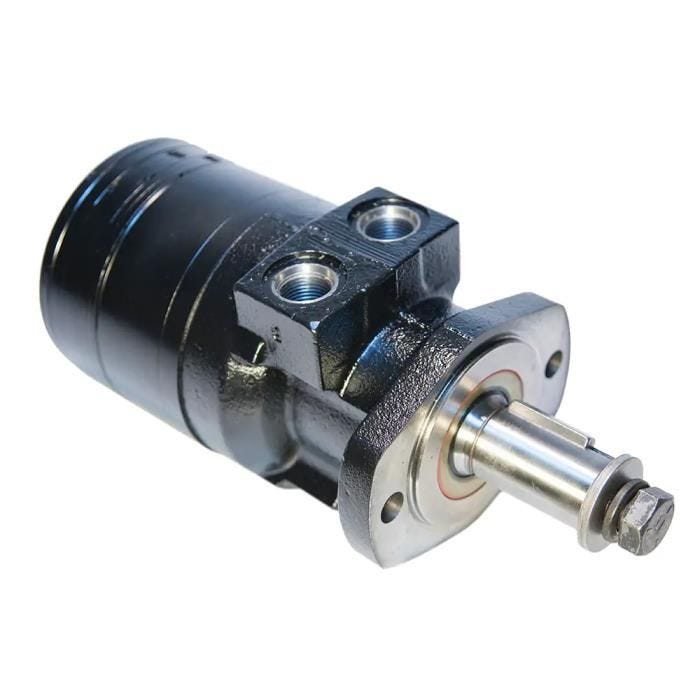

TG Motor 1"-6B Spline, 2 Bolt (SAE A) Mount
TG0170AS010AAAB
Shipping Availability
Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Select a location to pick up to see availaility
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1081486
TG motor 10.3 cubic inch displacement 1"-6B Spline shaft with a 2 Bolt (SAE A) mount. SAE -10 (5/8") ports. 4350 psi maximum pressure rating with a 554 rpm maximum speed rating
| Part # | TG0170AS010AAAB |
| SKU | 1081486 |
| Length | 9.77 in |
| Width | 5.25 in |
| Height | 5.033 in |
| Weight | 32 lb |
| Product Series | TG |
| Displacement | 10.3 cu.in |
| Displacement Range | 10-15 cubic inch |
| Mount | 2-Bolt (SAE A) |
| Shaft | 1"-6B Spline (SAE B-B) |
| Port Type and Size | SAE -10 (5/8") |
| Pressure Rating (psi, Cont) | 4350 |
| Max Speed Rating (rpm, Cont) | 554 |
