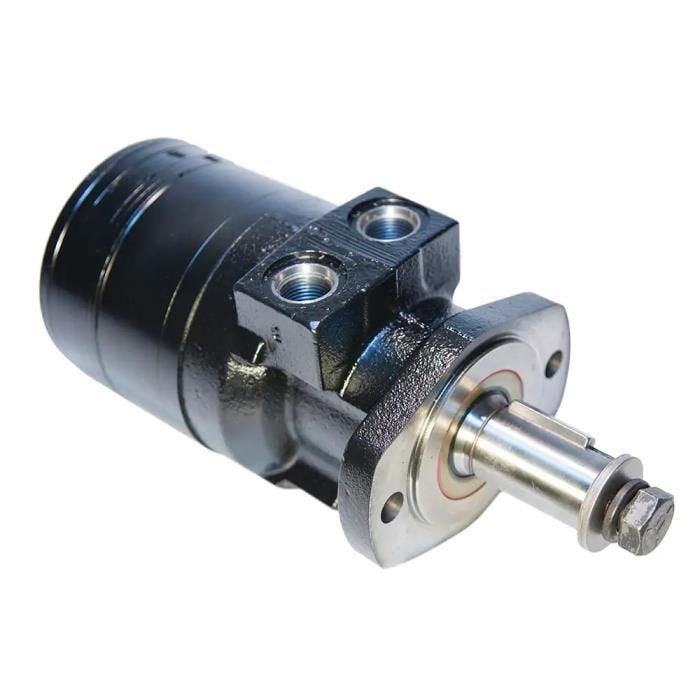

TG Motor 1"-6B Spline, 2 Bolt (SAE A) Mount

TG0240AS010AAAB

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1099664

TG motor 14.5 cubic inch displacement 1"-6B Spline shaft with a 2 Bolt (SAE A) mount. SAE -10 (5/8") ports. 4350 psi maximum pressure rating with a 393 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

* Representative Image

Details

Part #	TG0240AS010AAAB
SKU	1099664
Length	10.08 in
Width	5.25 in
Height	5.033 in
Weight	33.3 lb
Product Series	TG
Displacement	14.5 cu.in
Displacement Range	10-15 cubic inch
Mount	2-Bolt (SAE A)
Shaft	1"-6B Spline (SAE B-B)
Port Type and Size	SAE -10 (5/8")
Pressure Rating (psi, Cont)	4350
Max Speed Rating (rpm, Cont)	393

Resources

Parker TG Series
