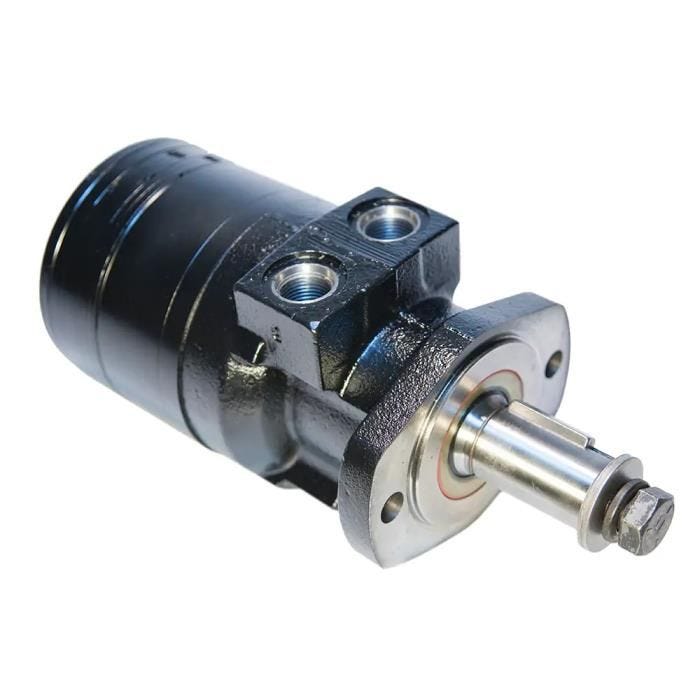

TG Motor 1"-6B Spline, 2 Bolt (SAE A) Mount
TG0475AS010AAAB
Shipping Availability
Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Select a location to pick up to see availaility
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1081500
TG motor 29.1 cubic inch displacement 1"-6B Spline shaft with a 2 Bolt (SAE A) mount. SAE -10 (5/8") ports. 4350 psi maximum pressure rating with a 237 rpm maximum speed rating
| Part # | TG0475AS010AAAB |
| SKU | 1081500 |
| Length | 11.15 in |
| Width | 5.25 in |
| Height | 5.033 in |
| Weight | 37.9 lb |
| Product Series | TG |
| Displacement | 29.1 cu.in |
| Displacement Range | 20-30 cubic inch |
| Mount | 2-Bolt (SAE A) |
| Shaft | 1"-6B Spline (SAE B-B) |
| Port Type and Size | SAE -10 (5/8") |
| Pressure Rating (psi, Cont) | 4350 |
| Max Speed Rating (rpm, Cont) | 237 |
