TB Motor 1" Keyed (SAE B-B), 2 Bolt (SAE A) Mount

TB0365AP100AAAB

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1091912

TB motor 22.6 cubic inch displacement 1" Keyed (SAE B-B) shaft with a 2 Bolt (SAE A) mount. NPT -08 (1/2") ports. 2750 psi maximum pressure rating with a 151 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

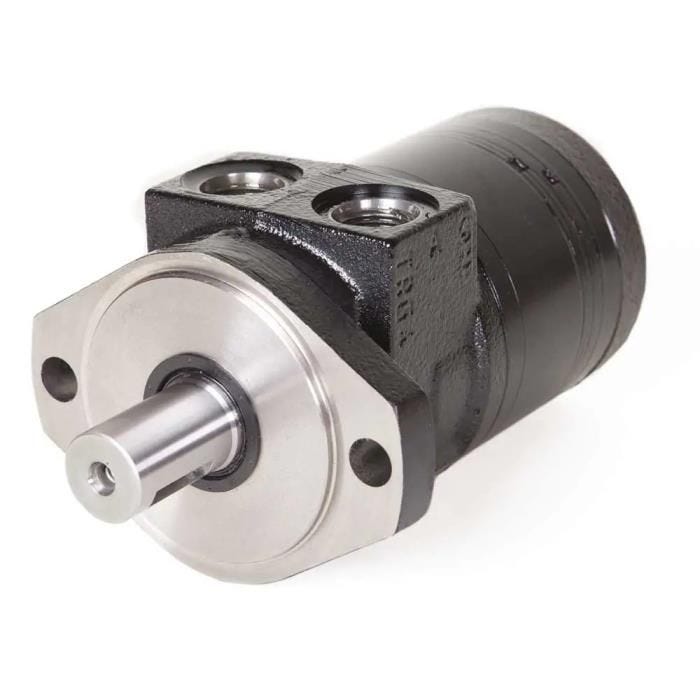

* Representative Image

Details

Part #	TB0365AP100AAAB
SKU	1091912
Length	9.84 in
Width	5.01 in
Height	3.84 in
Weight	18.4 lb
Product Series	TB
Displacement	22.6 cu.in
Displacement Range	20-30 cubic inch
Mount	2-Bolt (SAE A)
Shaft	1" Keyed (SAE B-B)
Port Type and Size	NPT -08 (1/2")
Pressure Rating (psi, Cont)	2750
Max Speed Rating (rpm, Cont)	151

Resources

Parker TB Series
