TB Motor 1" Keyed (SAE B-B), 4 Bolt Standard Mount

TB0260FS100AAAB

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1120846

TB motor 15.9 cubic inch displacement 1" Keyed (SAE B-B) shaft with a 4 Bolt Standard mount. SAE -10 (5/8") ports. 2750 psi maximum pressure rating with a 216 rpm maximum speed rating

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

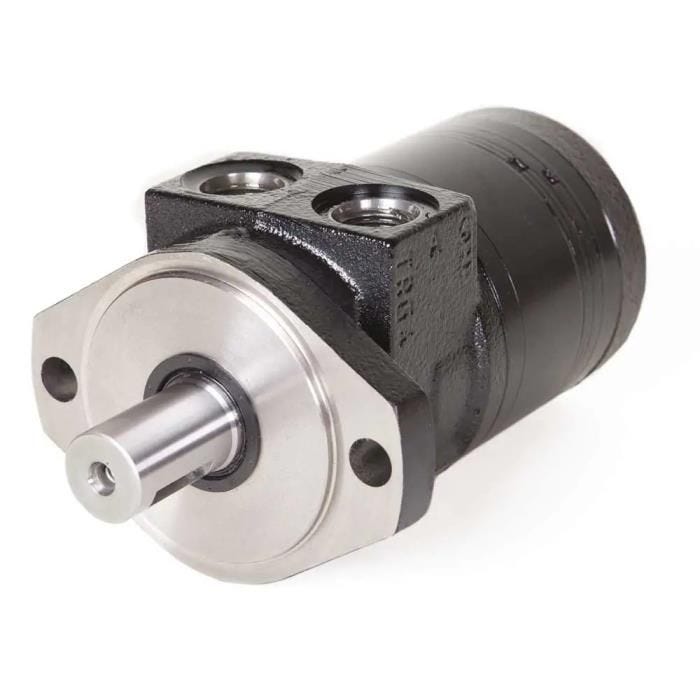

* Representative Image

Details

Part #	TB0260FS100AAAB
SKU	1120846
Length	9.35 in
Width	3.76 in
Height	3.84 in
Weight	16.3 lb
Product Series	TB
Displacement	15.9 cu.in
Displacement Range	15-20 cubic inch
Mount	4-Bolt Standard
Shaft	1" Keyed (SAE B-B)
Port Type and Size	SAE -10 (5/8")
Pressure Rating (psi, Cont)	2750
Max Speed Rating (rpm, Cont)	216

Resources

Parker TB Series
