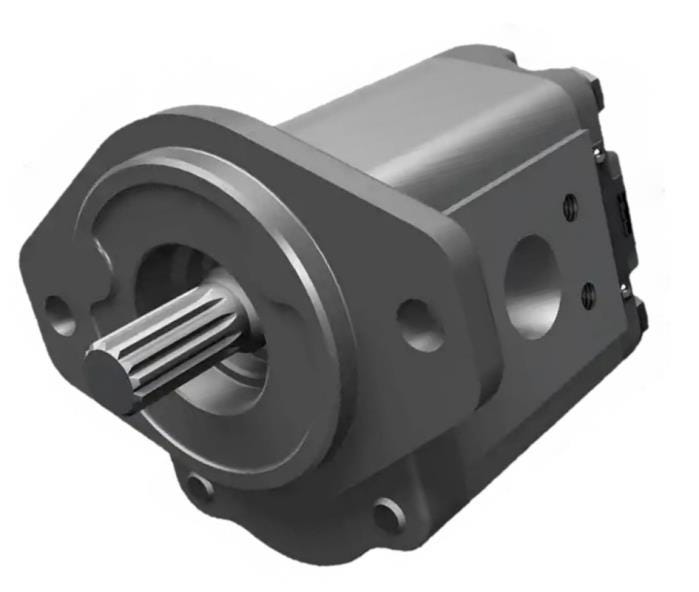

Group 2 Gear Pump CCW, SAE A, 3/4"-11T Spline
AGP2, CCW, 2 Bolt SAE A, 3/4"-11T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-LA2-12101210-03611T CCW SAE Side & Rear Ports 0.36 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 345.00 / each
Aluminum AGP2-LA2-12101210-05111T CCW SAE Side & Rear Ports 0.51 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-LA2-12101210-06611T CCW SAE Side & Rear Ports 0.66 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 357.00 / each
Aluminum AGP2-LA2-12101210-08811T CCW SAE Side & Rear Ports 0.88 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-LA2-12101210-10211T CCW SAE Side & Rear Ports 1.02 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-LA2-12101210-11711T CCW SAE Side & Rear Ports 1.17 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-LA2-12101210-13911T CCW SAE Side & Rear Ports 1.39 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3265 psi 369.00 / each
Aluminum AGP2-LA2-12101210-15411T CCW SAE Side & Rear Ports 1.64 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 2900 psi 378.00 / each
Aluminum AGP2-LA2-12101210-20111T CCW SAE Side & Rear Ports 2.01 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 2200 psi 405.00 / each

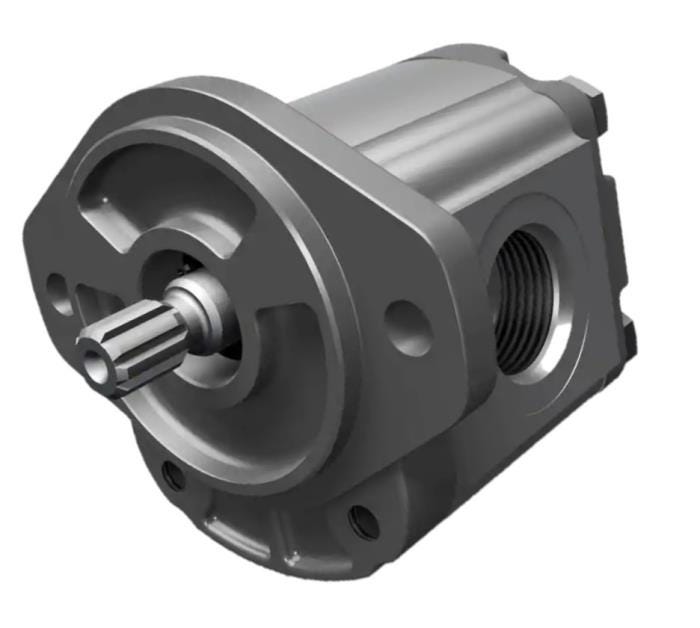

Group 2 Gear Pump CCW, SAE A, 3/4"-Keyed
AGP2, CCW, 2 Bolt SAE A, 3/4"-Key
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-LA2-12101210-05175K CCW SAE Side & Rear Ports 0.51 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-LA2-12101210-06675K CCW SAE Side & Rear Ports 0.66 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 357.00 / each
Aluminum AGP2-LA2-12101210-10275K CCW SAE Side & Rear Ports 1.02 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-LA2-12101210-11775K CCW SAE Side & Rear Ports 1.17 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-LA2-12101210-13975K CCW SAE Side & Rear Ports 1.39 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3265 psi 369.00 / each
Aluminum AGP2-LA2-12101210-15475K CCW SAE Side & Rear Ports 1.64 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 2900 psi 378.00 / each

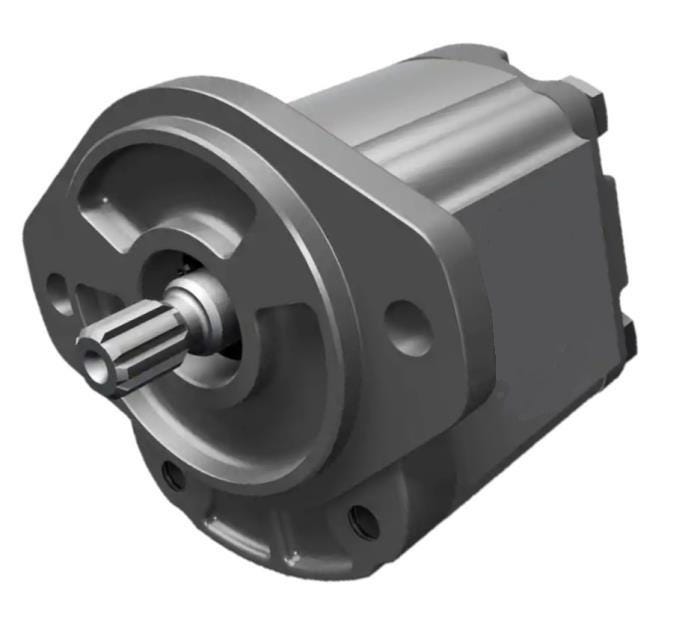

Group 2 Gear Pump CCW, SAE A, 5/8"-9T Spline
AGP2, CCW, 2 Bolt SAE A, 5/8"-9T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-LA2-12101210-0249T CCW SAE Side & Rear Ports 0.24 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 342.00 / each
Aluminum AGP2-LA2-12101210-0369T CCW SAE Side & Rear Ports 0.36 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 345.00 / each
Aluminum AGP2-LA2-12101210-0519T CCW SAE Side & Rear Ports 0.51 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-LA2-12101210-0669T CCW SAE Side & Rear Ports 0.66 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 357.00 / each
Aluminum AGP2-LA2-12101210-0889T CCW SAE Side & Rear Ports 0.88 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-LA2-12101210-1029T CCW SAE Side & Rear Ports 1.02 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-LA2-12101210-1179T CCW SAE Side & Rear Ports 1.17 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-LA2-12101210-1399T CCW SAE Side & Rear Ports 1.39 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3265 psi 369.00 / each
Aluminum AGP2-LA2-12101210-1549T CCW SAE Side & Rear Ports 1.64 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 2900 psi 378.00 / each
Group 2 Gear Pump CCW, SAE A, 5/8"-Keyed
AGP2, CCW, 2 Bolt SAE A, 5/8"-Key
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-LA2-12101210-02463K CCW SAE Side & Rear Ports 0.24 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 342.00 / each
Aluminum AGP2-LA2-12101210-03663K CCW SAE Side & Rear Ports 0.36 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 345.00 / each
Aluminum AGP2-LA2-12101210-05163K CCW SAE Side & Rear Ports 0.51 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-LA2-12101210-06663K CCW SAE Side & Rear Ports 0.66 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 357.00 / each
Aluminum AGP2-LA2-12101210-08863K CCW SAE Side & Rear Ports 0.88 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-LA2-12101210-10263K CCW SAE Side & Rear Ports 1.02 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-LA2-12101210-11763K CCW SAE Side & Rear Ports 1.17 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-LA2-12101210-13963K CCW SAE Side & Rear Ports 1.39 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3265 psi 369.00 / each
Group 2 Gear Pump CW, SAE A, 3/4"-11T Spline
AGP2, CW, 2 Bolt SAE A, 3/4"-11T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-RA2-12101210-05111T CW SAE Side & Rear Ports 0.51 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-RA2-12101210-06611T CW SAE Side & Rear Ports 0.66 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 357.00 / each
Aluminum AGP2-RA2-12101210-08811T CW SAE Side & Rear Ports 0.88 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-10211T CW SAE Side & Rear Ports 1.02 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-11711T CW SAE Side & Rear Ports 1.17 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-RA2-12101210-13911T CW SAE Side & Rear Ports 1.39 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3265 psi 369.00 / each
Aluminum AGP2-RA2-12101210-15411T CW SAE Side & Rear Ports 1.64 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 2900 psi 378.00 / each
Group 2 Gear Pump CW, SAE A, 3/4"-Keyed
AGP2, CW, 2 Bolt SAE A, 3/4"-Key
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-RA2-12101210-05175K CW SAE Side & Rear Ports 0.51 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-RA2-12101210-06675K CW SAE Side & Rear Ports 0.66 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-RA2-12101210-08875K CW SAE Side & Rear Ports 0.88 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-10275K CW SAE Side & Rear Ports 1.02 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-11775K CW SAE Side & Rear Ports 1.17 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-RA2-12101210-13975K CW SAE Side & Rear Ports 1.39 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 3265 psi 369.00 / each
Aluminum AGP2-RA2-12101210-15475K CW SAE Side & Rear Ports 1.64 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 2900 psi 378.00 / each
Aluminum AGP2-RA2-12101210-20175K CW SAE Side & Rear Ports 2.01 cubic inch 3/4"-Keyed 2 Bolt (SAE A) 2200 psi 405.00 / each
Group 2 Gear Pump CW, SAE A, 5/8"-9T Spline
AGP2, CW, 2 Bolt SAE A, 5/8"-9T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-RA2-12101210-0249T CW SAE Side & Rear Ports 0.24 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 342.00 / each
Aluminum AGP2-RA2-12101210-0369T CW SAE Side & Rear Ports 0.36 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 345.00 / each
Aluminum AGP2-RA2-12101210-0519T CW SAE Side & Rear Ports 0.51 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-RA2-12101210-0669T CW SAE Side & Rear Ports 0.66 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 357.00 / each
Aluminum AGP2-RA2-12101210-0889T CW SAE Side & Rear Ports 0.88 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-1029T CW SAE Side & Rear Ports 1.02 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-1179T CW SAE Side & Rear Ports 1.17 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-RA2-12101210-1399T CW SAE Side & Rear Ports 1.39 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 3265 psi 369.00 / each
Aluminum AGP2-RA2-12101210-1549T CW SAE Side & Rear Ports 1.64 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 2900 psi 378.00 / each
Aluminum AGP2-RA2-12101210-2019T CW SAE Side & Rear Ports 2.01 cubic inch 5/8"-9T Spline (SAE A) 2 Bolt (SAE A) 2200 psi 405.00 / each
Group 2 Gear Pump CW, SAE A, 5/8"-Keyed
AGP2, CW, 2 Bolt SAE A, 5/8"-Key
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP2-RA2-12101210-02463K CW SAE Side & Rear Ports 0.24 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 342.00 / each
Aluminum AGP2-RA2-12101210-03663K CW SAE Side & Rear Ports 0.36 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 345.00 / each
Aluminum AGP2-RA2-12101210-05163K CW SAE Side & Rear Ports 0.51 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 351.00 / each
Aluminum AGP2-RA2-12101210-06663K CW SAE Side & Rear Ports 0.66 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 357.00 / each
Aluminum AGP2-RA2-12101210-08863K CW SAE Side & Rear Ports 0.88 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-10263K CW SAE Side & Rear Ports 1.02 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 360.00 / each
Aluminum AGP2-RA2-12101210-11763K CW SAE Side & Rear Ports 1.17 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3625 psi 363.00 / each
Aluminum AGP2-RA2-12101210-13963K CW SAE Side & Rear Ports 1.39 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 3265 psi 369.00 / each
Aluminum AGP2-RA2-12101210-15463K CW SAE Side & Rear Ports 1.64 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 2900 psi 0.00 / each
Aluminum AGP2-RA2-12101210-20163K CW SAE Side & Rear Ports 2.01 cubic inch 5/8"-Keyed (SAE A) 2 Bolt (SAE A) 2200 psi 405.00 / each

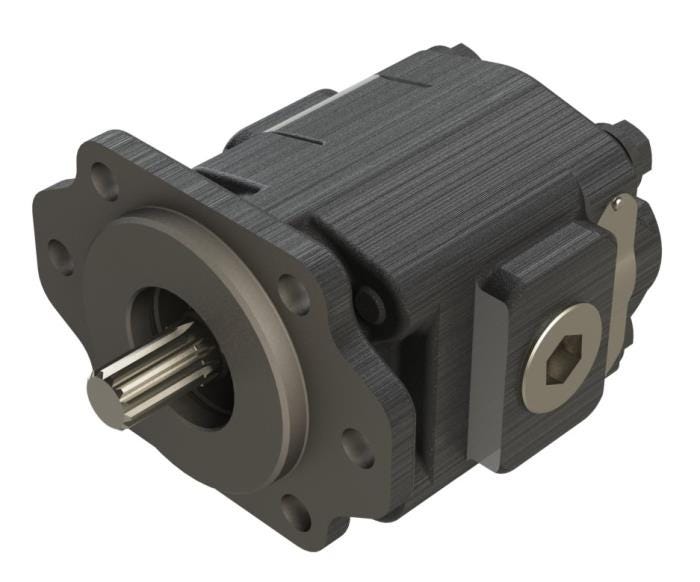

Group 2.5 Gear Pump CCW, SAE A, 3/4"-11T Spline
AGP25, CCW, 2 Bolt SAE A, 3/4"-11T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-LA2-16121612-07311T CCW SAE Rear Port Only 0.73 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-09711T CCW SAE Side & Rear Ports 0.97 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-11611T CCW SAE Side & Rear Ports 1.16 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-14011T CCW SAE Side & Rear Ports 1.4 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-20162016-15211T CCW SAE Side & Rear Ports 1.52 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-17111T CCW SAE Side & Rear Ports 1.71 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-20111T CCW SAE Side & Rear Ports 2.01 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-23211T CCW SAE Side & Rear Ports 2.32 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 548.55 / each
Aluminum AGP25-LA2-20162016-26811T CCW SAE Side & Rear Ports 2.68 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3190 psi 548.55 / each
Aluminum AGP25-LA2-20162016-31711T CCW SAE Side & Rear Ports 3.17 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 2900 psi 548.55 / each
Group 2.5 Gear Pump CCW, SAE A, 7/8"-13T Spline
AGP25, CCW, 2 Bolt SAE A, 7/8"-13T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-LA2-16121612-07313T CCW SAE Side & Rear Ports 0.73 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-09713T CCW SAE Side & Rear Ports 0.97 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-11613T CCW SAE Side & Rear Ports 1.16 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-14013T CCW SAE Side & Rear Ports 1.4 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-20162016-15213T CCW SAE Side & Rear Ports 1.52 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-17113T CCW SAE Side & Rear Ports 1.71 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-20113T CCW SAE Side & Rear Ports 2.01 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-23213T CCW SAE Side & Rear Ports 2.32 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 548.55 / each
Aluminum AGP25-LA2-20162016-26813T CCW SAE Side & Rear Ports 2.68 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3190 psi 548.55 / each
Group 2.5 Gear Pump CCW, SAE A, 7/8"-Keyed
AGP25, CCW, 2 Bolt SAE A, 7/8"-Key
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-LA2-16121612-07387K CCW SAE Side & Rear Ports 0.73 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-09787K CCW SAE Side & Rear Ports 0.97 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-11687K CCW SAE Side & Rear Ports 1.16 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-16121612-14087K CCW SAE Side & Rear Ports 1.4 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-LA2-20162016-15287K CCW SAE Side & Rear Ports 1.52 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-17187K CCW SAE Side & Rear Ports 1.71 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-20187K CCW SAE Side & Rear Ports 2.01 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-LA2-20162016-23287K CCW SAE Side & Rear Ports 2.32 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 548.55 / each
Aluminum AGP25-LA2-20162016-26887K CCW SAE Side & Rear Ports 2.68 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3190 psi 548.55 / each
Group 2.5 Gear Pump CCW, SAE B, 3/4"-11T Spline
AGP25, CCW, 2 Bolt SAE B, 3/4"-11T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-LB2-16121612-07311T CCW SAE Side & Rear Ports 0.73 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-09711T CCW SAE Side & Rear Ports 0.97 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-11611T CCW SAE Side & Rear Ports 1.16 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-14011T CCW SAE Side & Rear Ports 1.4 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-20162016-15211T CCW SAE Side & Rear Ports 1.52 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-17111T CCW SAE Side & Rear Ports 1.71 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 548.55 / each
Aluminum AGP25-LB2-20162016-20111T CCW SAE Side & Rear Ports 2.01 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-23211T CCW SAE Side & Rear Ports 2.32 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 548.55 / each
Aluminum AGP25-LB2-20162016-26811T CCW SAE Side & Rear Ports 2.68 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3190 psi 548.55 / each
Group 2.5 Gear Pump CCW, SAE B, 7/8"-13T Spline
AGP25, CCW, 2 Bolt SAE B, 7/8"-13T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-LB2-16121612-07313T CCW SAE Side & Rear Ports 0.73 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-09713T CCW SAE Side & Rear Ports 0.97 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-11613T CCW SAE Side & Rear Ports 1.16 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-14013T CCW SAE Side & Rear Ports 1.4 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-20162016-15213T CCW SAE Side & Rear Ports 1.52 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-17113T CCW SAE Side & Rear Ports 1.71 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-20113T CCW SAE Side & Rear Ports 2.01 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-23213T CCW SAE Side & Rear Ports 2.32 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 548.55 / each
Aluminum AGP25-LB2-20162016-26813T CCW SAE Side & Rear Ports 2.68 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3190 psi 548.55 / each
Aluminum AGP25-LB2-20162016-31713T CCW SAE Side & Rear Ports 3.17 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 2900 psi 548.55 / each
Group 2.5 Gear Pump CCW, SAE A, 7/8"-Keyed
AGP25, CCW, 2 Bolt SAE B, 7/8"-Key
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-LB2-16121612-07387K CCW SAE Side & Rear Ports 0.73 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-09787K CCW SAE Side & Rear Ports 0.97 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-11687K CCW SAE Side & Rear Ports 1.16 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-16121612-14087K CCW SAE Side & Rear Ports 1.4 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-LB2-20162016-15287K CCW SAE Side & Rear Ports 1.52 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-17187K CCW SAE Side & Rear Ports 1.71 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-20187K CCW SAE Side & Rear Ports 2.01 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-LB2-20162016-23287K CCW SAE Side & Rear Ports 2.32 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3625 psi 548.55 / each
Aluminum AGP25-LB2-20162016-26887K CCW SAE Side & Rear Ports 2.68 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 3190 psi 548.55 / each
Aluminum AGP25-LB2-20162016-31787K CCW SAE Side & Rear Ports 3.17 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE B) 2900 psi 548.55 / each
Group 2.5 Gear Pump CW, SAE A, 3/4"-11T Spline
AGP25, CW, 2 Bolt SAE A, 3/4"-11T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-RA2-16121612-07311T CW SAE Side & Rear Ports 0.73 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-09711T CW SAE Side & Rear Ports 0.97 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-11611T CW SAE Side & Rear Ports 1.16 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-14011T CW SAE Side & Rear Ports 1.4 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-20162016-15211T CW SAE Side & Rear Ports 1.52 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 402.73 / each
Aluminum AGP25-RA2-20162016-17111T CW SAE Side & Rear Ports 1.71 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 413.43 / each
Aluminum AGP25-RA2-20162016-20111T CW SAE Side & Rear Ports 2.01 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 413.43 / each
Aluminum AGP25-RA2-20162016-23211T CW SAE Side & Rear Ports 2.32 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3625 psi 427.68 / each
Aluminum AGP25-RA2-20162016-26811T CW SAE Side & Rear Ports 2.68 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 3190 psi 431.25 / each
Aluminum AGP25-RA2-20162016-31711T CW SAE Side & Rear Ports 3.17 cubic inch 3/4"-11T Spline 2 Bolt (SAE A) 2900 psi 435.00 / each
Group 2.5 Gear Pump CW, SAE A, 7/8"-13T Spline
AGP25, CW, 2 Bolt SAE A, 7/8"-13T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-RA2-16121612-07313T CW SAE Side & Rear Ports 0.73 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-09713T CW SAE Side & Rear Ports 0.97 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-11613T CW SAE Side & Rear Ports 1.16 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-14013T CW SAE Side & Rear Ports 1.4 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-20162016-15213T CW SAE Side & Rear Ports 1.52 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 402.73 / each
Aluminum AGP25-RA2-20162016-17113T CW SAE Side & Rear Ports 1.71 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 413.43 / each
Aluminum AGP25-RA2-20162016-20113T CW SAE Side & Rear Ports 2.01 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 496.11 / each
Aluminum AGP25-RA2-20162016-23213T CW SAE Side & Rear Ports 2.32 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3625 psi 546.15 / each
Aluminum AGP25-RA2-20162016-26813T CW SAE Side & Rear Ports 2.68 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE A) 3190 psi 517.50 / each
Group 2.5 Gear Pump CW, SAE A, 7/8"-Keyed
AGP25, CW, 2 Bolt SAE A, 7/8"-Key
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-RA2-16121612-07387K CW SAE Side & Rear Ports 0.73 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-09787K CW SAE Side & Rear Ports 0.97 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-RA2-16121612-11687K CW SAE Side & Rear Ports 1.16 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-16121612-14087K CW SAE Side & Rear Ports 1.4 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 395.60 / each
Aluminum AGP25-RA2-20162016-15287K CW SAE Side & Rear Ports 1.52 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 402.73 / each
Aluminum AGP25-RA2-20162016-17187K CW SAE Side & Rear Ports 1.71 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 413.43 / each
Aluminum AGP25-RA2-20162016-20187K CW SAE Side & Rear Ports 2.01 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 413.43 / each
Aluminum AGP25-RA2-20162016-23287K CW SAE Side & Rear Ports 2.32 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3625 psi 427.68 / each
Aluminum AGP25-RA2-20162016-26887K CW SAE Side & Rear Ports 2.68 cubic inch 7/8"-Keyed (SAE B) 2 Bolt (SAE A) 3190 psi 431.25 / each
Group 2.5 Gear Pump CW, SAE A, Clutch Pump
AGP25, CW, 2 Bolt SAE A, Tapered
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-RA2-16121612-073CPT CW SAE Side & Rear Ports 0.73 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-RA2-16121612-097CPT CW SAE Side & Rear Ports 0.97 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-RA2-16121612-116CPT CW SAE Side & Rear Ports 1.16 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-RA2-16121612-140CPT CW SAE Side & Rear Ports 1.4 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 503.22 / each
Aluminum AGP25-RA2-20162016-152CPT CW SAE Side & Rear Ports 1.52 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-RA2-20162016-171CPT CW SAE Side & Rear Ports 1.71 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-RA2-20162016-201CPT CW SAE Side & Rear Ports 2.01 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 525.87 / each
Aluminum AGP25-RA2-20162016-232CPT CW SAE Side & Rear Ports 2.32 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3625 psi 548.55 / each
Aluminum AGP25-RA2-20162016-268CPT CW SAE Side & Rear Ports 2.68 cubic inch Clutch Pump Taper 2 Bolt (SAE A) 3190 psi 548.55 / each
Group 2.5 Gear Pump CW, SAE B, 3/4"-11T Spline
AGP25, CW, 2 Bolt SAE B, 3/4"-11T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-RB2-16121612-07311T CW SAE Side & Rear Ports 0.73 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 392.79 / each
Aluminum AGP25-RB2-16121612-09711T CW SAE Side & Rear Ports 0.97 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 392.79 / each
Aluminum AGP25-RB2-16121612-11611T CW SAE Side & Rear Ports 1.16 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 392.79 / each
Aluminum AGP25-RB2-16121612-14011T CW SAE Side & Rear Ports 1.4 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 392.79 / each
Aluminum AGP25-RB2-20162016-15211T CW SAE Side & Rear Ports 1.52 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 400.13 / each
Aluminum AGP25-RB2-20162016-17111T CW SAE Side & Rear Ports 1.71 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 411.16 / each
Aluminum AGP25-RB2-20162016-20111T CW SAE Side & Rear Ports 2.01 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 411.16 / each
Aluminum AGP25-RB2-20162016-23211T CW SAE Side & Rear Ports 2.32 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3625 psi 425.83 / each
Aluminum AGP25-RB2-20162016-26811T CW SAE Side & Rear Ports 2.68 cubic inch 3/4"-11T Spline 2 Bolt (SAE B) 3190 psi 429.51 / each
Group 2.5 Gear Pump CW, SAE B, 7/8"-13T Spline
AGP25, CW, 2 Bolt SAE B, 7/8"-13T
Type Part # Rotation Port Port Location Displacement Shaft Mount Pressure Web Price
Aluminum AGP25-RB2-16121612-07313T CW SAE Side & Rear Ports 0.73 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 457.62 / each
Aluminum AGP25-RB2-16121612-09713T CW SAE Side & Rear Ports 0.97 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 457.62 / each
Aluminum AGP25-RB2-16121612-11613T CW SAE Side & Rear Ports 1.16 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 457.62 / each
Aluminum AGP25-RB2-16121612-14013T CW SAE Side & Rear Ports 1.4 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 503.22 / each
Aluminum AGP25-RB2-20162016-15213T CW SAE Side & Rear Ports 1.52 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 466.17 / each
Aluminum AGP25-RB2-20162016-17113T CW SAE Side & Rear Ports 1.71 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-RB2-20162016-20113T CW SAE Side & Rear Ports 2.01 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 525.87 / each
Aluminum AGP25-RB2-20162016-23213T CW SAE Side & Rear Ports 2.32 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3625 psi 548.55 / each
Aluminum AGP25-RB2-20162016-26813T CW SAE Side & Rear Ports 2.68 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 3190 psi 548.55 / each
Aluminum AGP25-RB2-20162016-31713T CW SAE Side & Rear Ports 3.17 cubic inch 7/8"-13T Spline (SAE B) 2 Bolt (SAE B) 2900 psi 508.95 / each
Copyright © 2021 by FORCE America Inc. All Rights Reserved.
