P20 Gear Pump Bi-Rot, SAE B, 7/8"-13T Spline


Shipping Availability


Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
P20 Series Pump 2.95 cubic inch displacement, 3000 psi, 2400 rpm rated. Bi-Rotational, 2/4 Bolt (SAE B), 7/8"-13T Spline (SAE B), NPT Tapered Pipe Ports

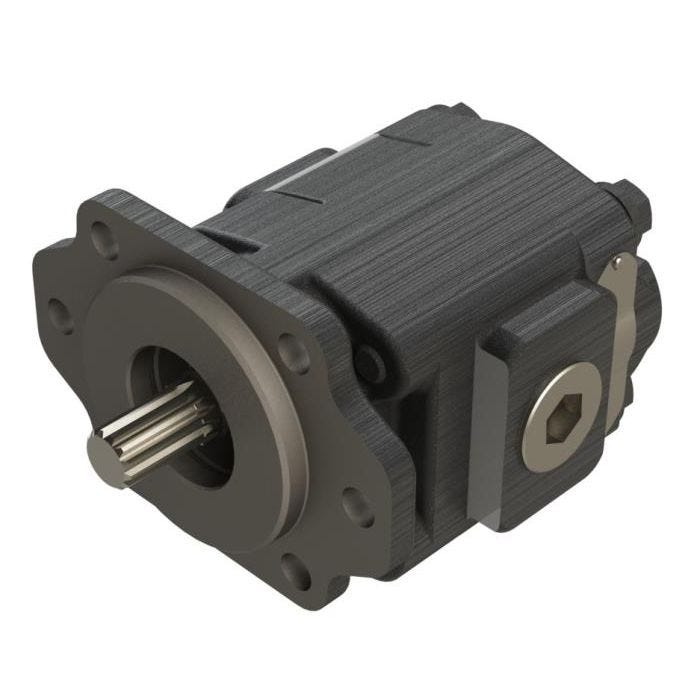

* Representative Image
Type Cast Iron
Series P20
Part # 308-9110-264
SKU 1132812
Length 8.5 in
Width 5.5 in
Height 5 in
Weight 31 lb
Rotation Bi
Port NPT
Port Location Side & Rear Ports
Displacement 2.95 cubic inch
Shaft 7/8"-13T Spline (SAE B)
Mount 2/4 Bolt (SAE B)
Pressure 3000 psi
Side Pressure Port NPT -20 (1-1/4")
Side Suction Port NPT -20 (1-1/4")
Rear Pressure Port NPT -16 (1")
Rear Suction Port NPT -16 (1")
