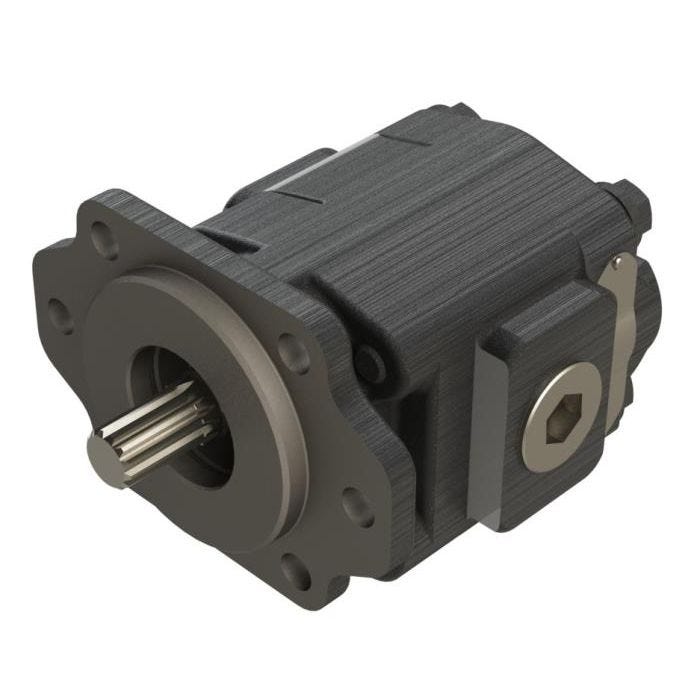

P20 Gear Pump Bi-Rot, SAE B, 7/8"-13T Spline
308-9110-277
Shipping Availability
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1132820
P20 Series Pump 3.94 cubic inch displacement, 2500 psi, 2400 rpm rated. Bi-Rotational, 2/4 Bolt (SAE B), 7/8"-13T Spline (SAE B), SAE O-Ring Boss Ports
Type | Cast Iron |
Series | P20 |
Part # | 308-9110-277 |
SKU | 1132820 |
Length | 9 in |
Width | 5.5 in |
Height | 5 in |
Weight | 34 lb |
Rotation | Bi |
Port | SAE |
Port Location | Side & Rear Ports |
Displacement | 3.94 cubic inch |
Shaft | 7/8"-13T Spline (SAE B) |
Mount | 2/4 Bolt (SAE B) |
Pressure | 2500 psi |
Side Pressure Port | SAE -20 (1-1/4") |
Side Suction Port | SAE -20 (1-1/4") |
Rear Pressure Port | SAE -16 (1") |
Rear Suction Port | SAE -16 (1") |
