Group 2 Gear Pump CCW, SAE A, 5/8"-9T Spline

AGP2-LA2-12101210-0889T

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1124049

Group 2 Aluminum Pump 0.88 cubic inch displacement, 3625 psi, 3300 rpm rated. CCW (Left Hand), 2 Bolt (SAE A), 5/8"-9T Spline (SAE A), SAE O-Ring Boss Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

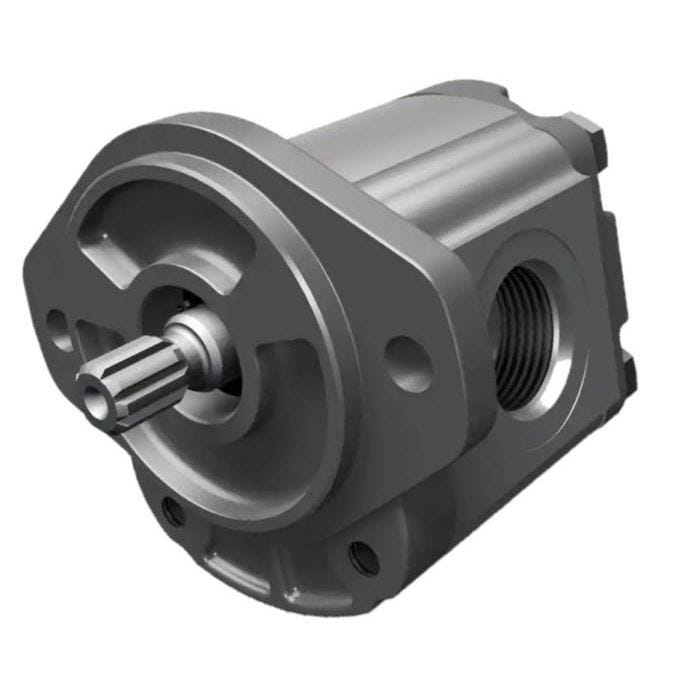

* Representative Image

Details

Type	Aluminum
Series	AGP2
Part #	AGP2-LA2-12101210-0889T
SKU	1124049
Length	4.5 in
Width	3.5 in
Height	4 in
Weight	6.75 lb
Rotation	CCW
Port	SAE
Port Location	Side & Rear Ports
Displacement	0.88 cubic inch
Shaft	5/8"-9T Spline (SAE A)
Mount	2 Bolt (SAE A)
Pressure	3625 psi
Side Pressure Port	SAE -10 (5/8")
Side Suction Port	SAE -12 (3/4")
Rear Pressure Port	SAE -10 (5/8")
Rear Suction Port	SAE -12 (3/4")
