P20 Gear Pump Bi-Rot, SAE B, 1"-15T Spline

308-9110-296

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1132821

P20 Series Pump 3.97 cubic inch displacement, 2500 psi, 2400 rpm rated. Bi-Rotational, 2/4 Bolt (SAE B), 1"-15T Spline (SAE B-B), SAE O-Ring Boss Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

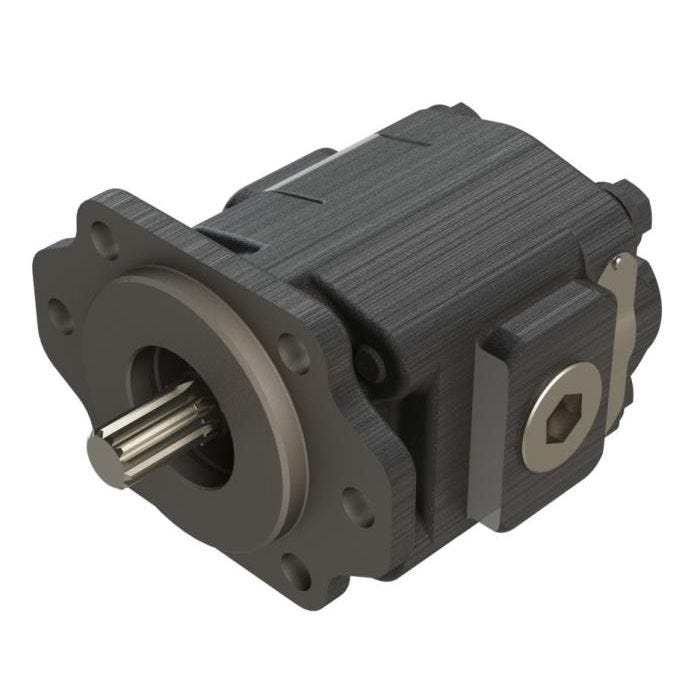

* Representative Image

Details

Type	Cast Iron
Series	P20
Part #	308-9110-296
SKU	1132821
Length	9.25 in
Width	5.5 in
Height	5 in
Weight	34 lb
Rotation	Bi
Port	SAE
Port Location	Side & Rear Ports
Displacement	3.97 cubic inch
Shaft	1"-15T Spline (SAE B-B)
Mount	2/4 Bolt (SAE B)
Pressure	2500 psi
Side Pressure Port	SAE -20 (1-1/4")
Side Suction Port	SAE -20 (1-1/4")
Rear Pressure Port	SAE -16 (1")
Rear Suction Port	SAE -16 (1")
