Group 2 Gear Pump CW, SAE A, 5/8"-9T Spline

AGP2-RA2-12101210-0519T

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1124223

Group 2 Aluminum Pump 0.51 cubic inch displacement, 3625 psi, 4000 rpm rated. CW (Right Hand), 2 Bolt (SAE A), 5/8"-9T Spline (SAE A), SAE O-Ring Boss Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

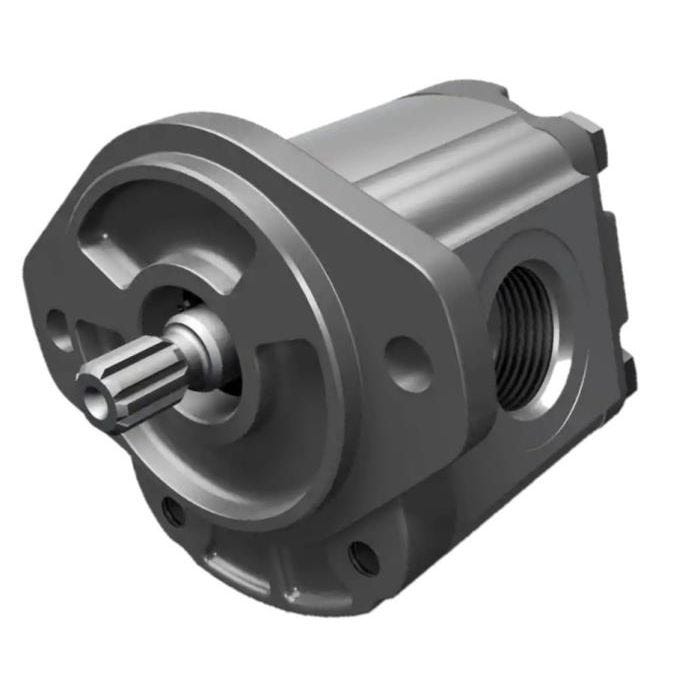

* Representative Image

Details

Type	Aluminum
Series	AGP2
Part #	AGP2-RA2-12101210-0519T
SKU	1124223
Length	4 in
Width	6 in
Height	5.5 in
Weight	6 lb
Rotation	CW
Port	SAE
Port Location	Side & Rear Ports
Displacement	0.51 cubic inch
Shaft	5/8"-9T Spline (SAE A)
Mount	2 Bolt (SAE A)
Pressure	3625 psi
Side Pressure Port	SAE -10 (5/8")
Side Suction Port	SAE -12 (3/4")
Rear Pressure Port	SAE -10 (5/8")
Rear Suction Port	SAE -12 (3/4")
