Group 2.5 Gear Pump CCW, SAE A, 7/8"-13T Spline

AGP25-LA2-20162016-26813T

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1125703

Group 2.5 Aluminum Pump 2.68 cubic inch displacement, 3190 psi, 2800 rpm rated. CCW (Left Hand), 2 Bolt (SAE A), 7/8"-13T Spline (SAE B), SAE O-Ring Boss Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

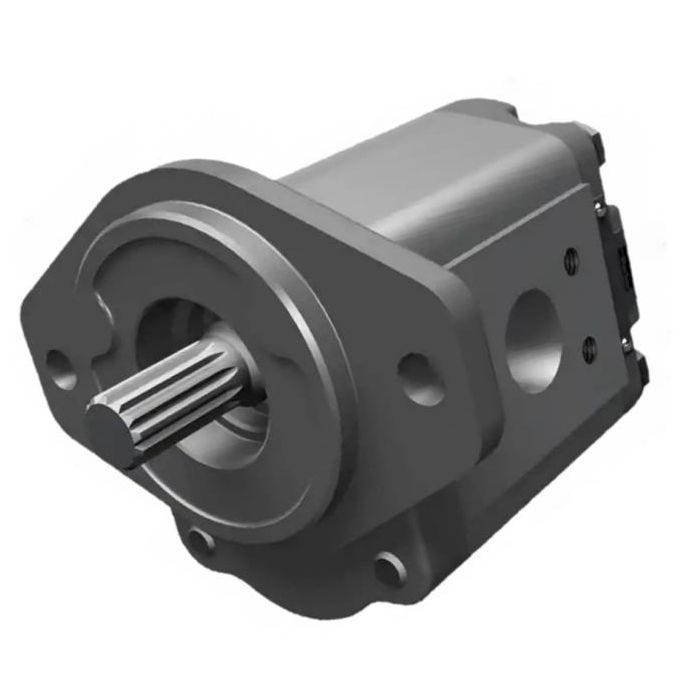

* Representative Image

Details

Type	Aluminum
Series	AGP25
Part #	AGP25-LA2-20162016-26813T
SKU	1125703
Length	6.65 in
Width	5 in
Height	4.75 in
Weight	20 lb
Rotation	CCW
Port	SAE
Port Location	Side & Rear Ports
Displacement	2.68 cubic inch
Shaft	7/8"-13T Spline (SAE B)
Mount	2 Bolt (SAE A)
Pressure	3190 psi
Side Pressure Port	SAE -16 (1")
Side Suction Port	SAE -20 (1-1/4")
Rear Pressure Port	SAE -16 (1")
Rear Suction Port	SAE -20 (1-1/4")
