P20 Gear Pump Bi-Rot, SAE B, 7/8"-13T Spline

308-9110-274

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1132816

P20 Series Pump 1.94 cubic inch displacement, 2500 psi, 2400 rpm rated. Bi-Rotational, 2/4 Bolt (SAE B), 7/8"-13T Spline (SAE B), SAE O-Ring Boss Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

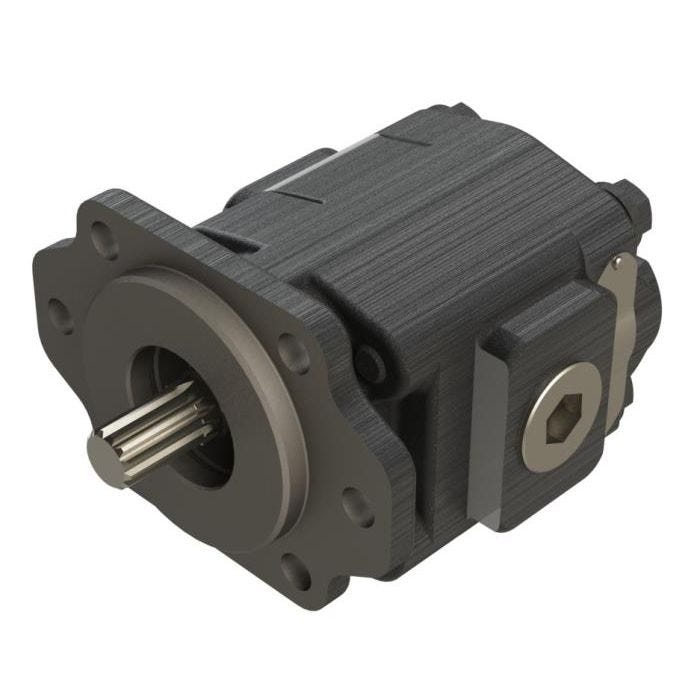

* Representative Image

Details

Type	Cast Iron
Series	P20
Part #	308-9110-274
SKU	1132816
Length	8 in
Width	5.5 in
Height	5 in
Weight	28 lb
Rotation	Bi
Port	SAE
Port Location	Side & Rear Ports
Displacement	1.94 cubic inch
Shaft	7/8"-13T Spline (SAE B)
Mount	2/4 Bolt (SAE B)
Pressure	2500 psi
Side Pressure Port	SAE -16 (1")
Side Suction Port	SAE -16 (1")
Rear Pressure Port	SAE -16 (1")
Rear Suction Port	SAE -16 (1")
