Group 2.5 Gear Pump CCW, SAE A, 3/4"-11T Spline

AGP25-LA2-16121612-09711T

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1125686

Group 2.5 Aluminum Pump 0.97 cubic inch displacement, 3625 psi, 3400 rpm rated. CCW (Left Hand), 2 Bolt (SAE A), 3/4"-11T Spline, SAE O-Ring Boss Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

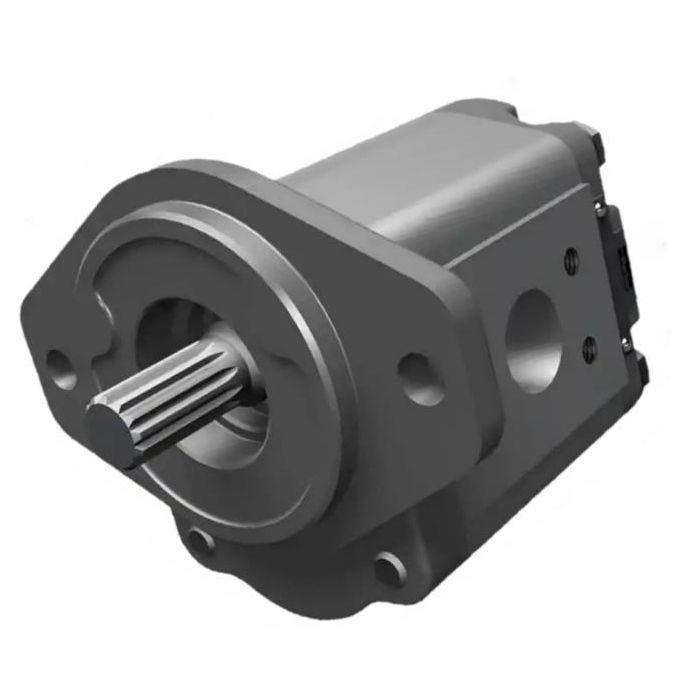

* Representative Image

Details

Type	Aluminum
Series	AGP25
Part #	AGP25-LA2-16121612-09711T
SKU	1125686
Length	5.5 in
Width	5 in
Height	4.75 in
Weight	17.65 lb
Rotation	CCW
Port	SAE
Port Location	Side & Rear Ports
Displacement	0.97 cubic inch
Shaft	3/4"-11T Spline
Mount	2 Bolt (SAE A)
Pressure	3625 psi
Side Pressure Port	SAE -12 (3/4")
Side Suction Port	SAE -16 (1")
Rear Pressure Port	SAE -12 (3/4")
Rear Suction Port	SAE -16 (1")
