Port Multipliers - 3 Bank Electric Selector Valve

Price: *Product only available via Quote Request

Request a Quote

To receive more information or request a quote, select the button below and complete our form.

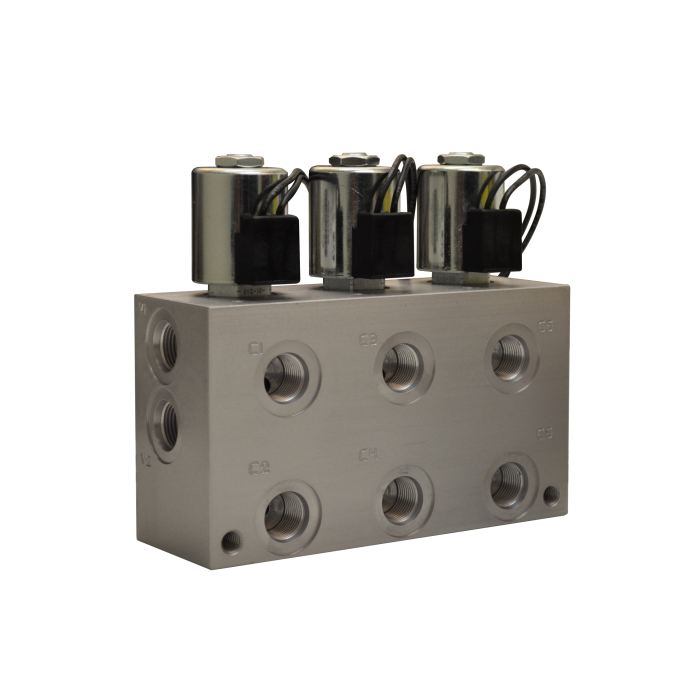

This 3 Bank Electric Selector Port Multiplier valve allows you to operate three functions from a single set of hydraulic outlets. The valve selects function and allows main directional valve to control actuator. Typical applications include agriculture, construction and forestry markets.
* Representative Image

This valve is also known as a "Multiplier" valve.

  • Optional switch box p/n CU-233
  • Other coil voltages and connection types available
  • Complete our Request a Quote form for quick-coupling options
  • Rated Flow: 12 GPM
  • Voltage: 12 VDC
  • Connection Type: Dual Lead Wires
  • Port Type: SAE 08
  • Max Pressure: 3000 PSI
  • Block Material: Aluminum
  • Control Type: on/off
  • Mount Style: Threaded holes
  • Mount Style: Thru-Holes
