2K Motor 1-1/4"-14 Spline (SAE C), 4 Bolt Magneto (SAE A) Mount
629AG00609A
Shipping Availability
Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Select a location to pick up to see availaility
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1184682

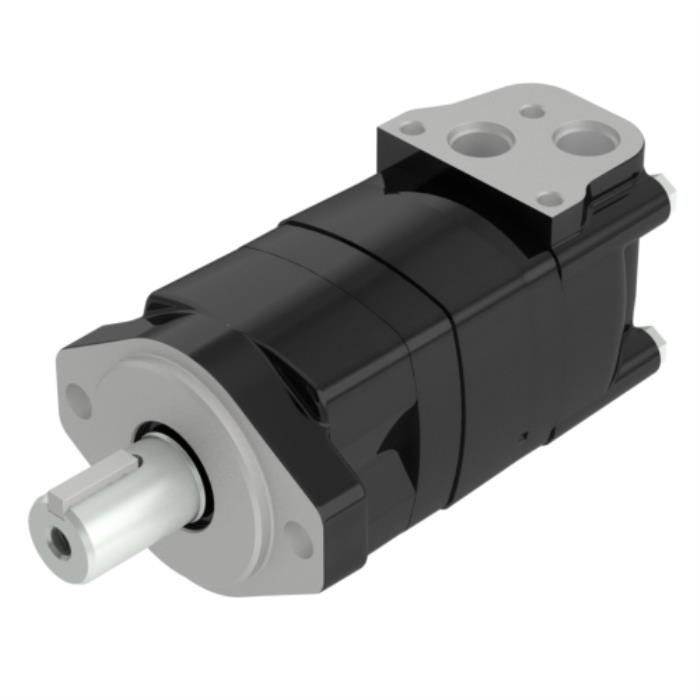

XL2K motor 9.8 cu.in displacement 1-1/4"-14T Spline (SAE C) shaft with a 4-Bolt Magneto. Combo SAE -10 (5/8") + Manifold ports. 3000 psi continuous pressure rating with an intermittent pressure rating of 3771 psi. 477 rpm continuous speed rating with an intermittent speed rating of 713 rpm.
| Part # | 629AG00609A |
| SKU | 1184682 |
| Length | 9.85 in |
| Width | 4.3 in |
| Height | 4.3 in |
| Weight | 22 lb |
| Product Series | XCEL 2K |
| Displacement | 9.8 cu.in |
| Displacement Range | 5-10 cubic inch |
| Mount | 4-Bolt Magneto |
| Shaft | 1-1/4"-14T Spline (SAE C) |
| Port Type and Size | Combo SAE -10 (5/8") + Manifold |
| Pressure Rating (psi, Cont) | 3000 |
| Pressure Rating (psi, Int) | 3771 |
| Max Speed Rating (rpm, Cont) | 477 |
| Max Speed Rating (rpm, Int) | 713 |
