SG102 Dump Pump, Pump/Valve Combo

318-9112-001

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1155102

SG102 Series Dump Pump 4.93 cubic inch displacement, 2500 psi, 2400 rpm rated. CCW (Left Hand), 4 Bolt (SAE B), 7/8"-13T Spline (SAE B), NPT Tapered Pipe Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

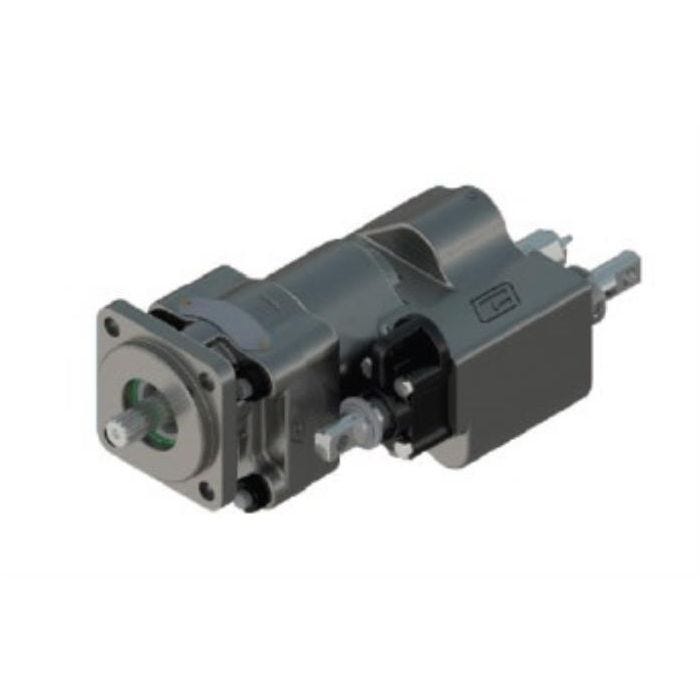

* Representative Image

Details

Type	Dump Pump
Series	SG102
Part #	318-9112-001
SKU	1155102
Length	15 in
Width	6.75 in
Height	5.5 in
Weight	56 lb
Shift	Cable
Rotation	CCW
Port	NPT
Port Location	Rear Port Only
Displacement	4.93 cubic inch
Shaft	7/8"-13T Spline (SAE B)
Mount	4 Bolt (SAE B)
Pressure	2500 psi
Rear Pressure Port	NPT -16 (1")
Rear Suction Port	NPT -20 (1-1/4")

Resources

FA1077 Dump Pump Spec Sheet
