SG102 Dump Pump, Pump/Valve Combo

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availability

SG102 Dump Pump, Pump/Valve Combo

318-9111-003

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1158165

SG102 Series Dump Pump 4.93 cubic inch displacement, 2500 psi, 2400 rpm rated. CW (Right Hand), DIN 5462, DIN 5462, NPT Tapered Pipe Ports

Contact Support

Skip to the end of the images gallery

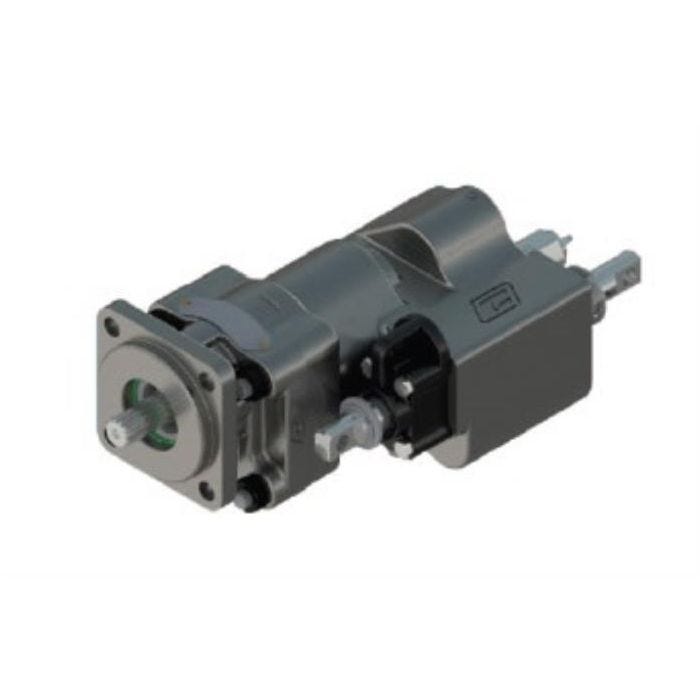

main product photo

Skip to the beginning of the images gallery

* Representative Image

Type	Dump Pump
Series	SG102
Part #	318-9111-003
SKU	1158165
Length	15 in
Width	6.75 in
Height	5.5 in
Weight	56 lb
Shift	Air
Rotation	CW
Port	NPT
Port Location	Rear Port Only
Displacement	4.93 cubic inch
Shaft	DIN 5462
Mount	DIN 5462
Pressure	2500 psi
Rear Pressure Port	NPT -16 (1")
Rear Suction Port	NPT -20 (1-1/4")

FA1077 Dump Pump Spec Sheet
