SG102 Dump Pump, Pump/Valve Combo

318-9111-001

Shipping Availability

5

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
SKU
1142449
SG102 Series Dump Pump 4.93 cubic inch displacement, 2500 psi, 2400 rpm rated. CW (Right Hand), 4 Bolt (SAE B), 7/8"-13T Spline (SAE B), NPT Tapered Pipe Ports

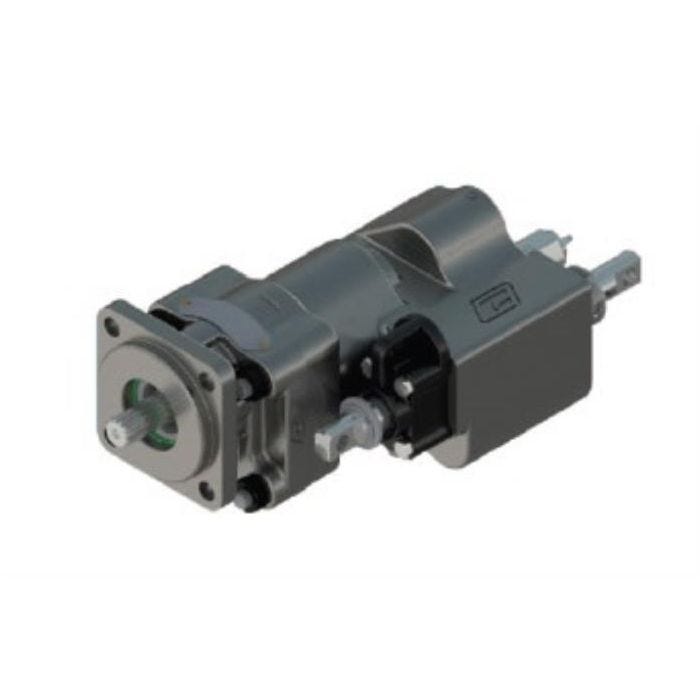

* Representative Image
Type Dump Pump
Series SG102
Part # 318-9111-001
SKU 1142449
Length 14.5 in
Width 7 in
Height 5.5 in
Weight 56 lb
Shift Cable
Rotation CW
Port NPT
Port Location Rear Port Only
Displacement 4.93 cubic inch
Shaft 7/8"-13T Spline (SAE B)
Mount 4 Bolt (SAE B)
Pressure 2500 psi
Rear Pressure Port NPT -16 (1")
Rear Suction Port NPT -20 (1-1/4")
