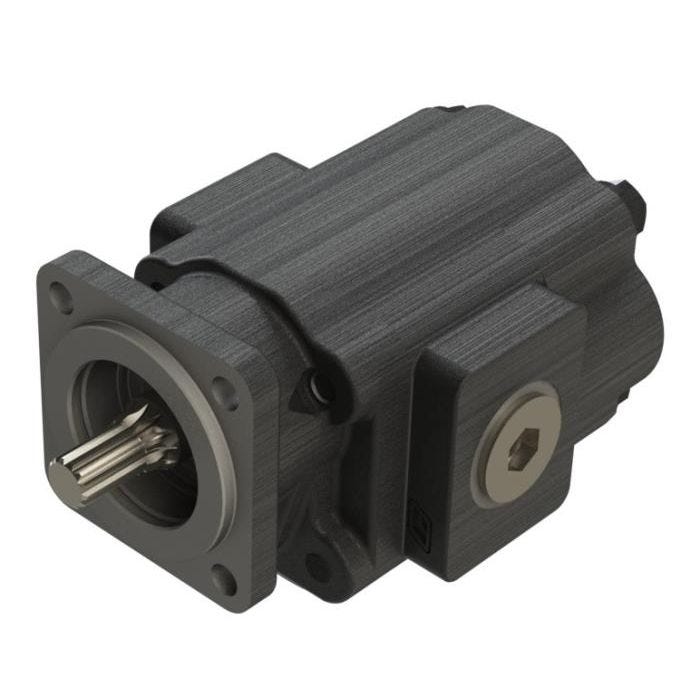

P51 Gear Pump Bi-Rot, SAE B, 1"-15T Spline

313-9610-800

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1132825

P51 Series Pump 6.37 cubic inch displacement, 2500 psi, 2400 rpm rated. Bi-Rotational, 2/4 Bolt (SAE B), 1"-15T Spline (SAE B-B), NPT Tapered Pipe Ports

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

* Representative Image

Details

Type	Cast Iron
Series	P51
Part #	313-9610-800
SKU	1132825
Length	10 in
Width	7 in
Height	6 in
Weight	55 lb
Rotation	Bi
Port	NPT
Port Location	Side & Rear Ports
Displacement	6.37 cubic inch
Shaft	1"-15T Spline (SAE B-B)
Mount	2/4 Bolt (SAE B)
Pressure	2500 psi
Side Pressure Port	NPT -24 (1-1/2")
Side Suction Port	NPT -24 (1-1/2")
Rear Pressure Port	NPT -24 (1-1/2")
Rear Suction Port	NPT -24 (1-1/2")
