P350 Gear Pump CW, SAE B, 7/8"-13T Spline

323-9110-524

Shipping Availability

5

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
SKU
1132850

P350 Series Pump 6.37 cubic inch displacement, 2500 psi, 2400 rpm rated. Bi-Rotational, 4 Bolt (SAE B), 7/8"-13T Spline (SAE B), SAE O-Ring Boss Ports

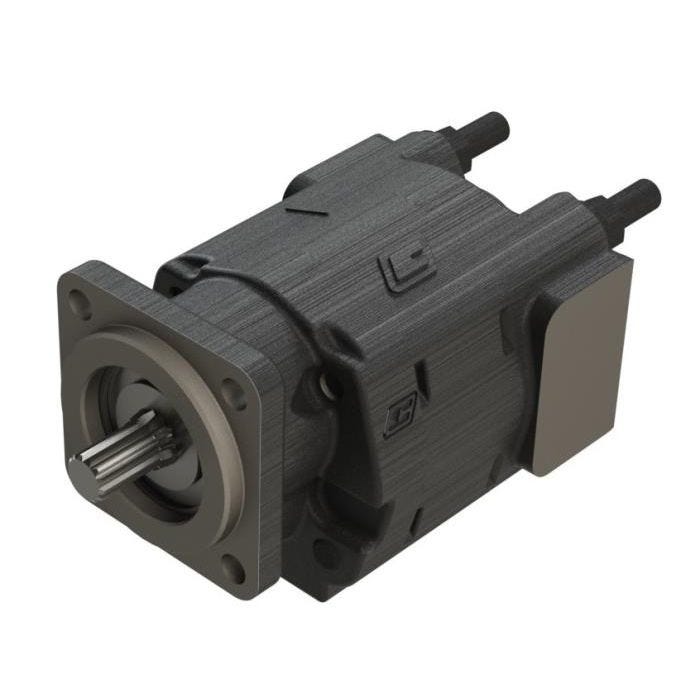

* Representative Image
Type Cast Iron
Series P350
Part # 323-9110-524
SKU 1132850
Length 13 in
Width 6 in
Height 6 in
Weight 53 lb
Rotation CW
Port SAE
Port Location Rear Port Only
Displacement 6.37 cubic inch
Shaft 7/8"-13T Spline (SAE B)
Mount 4 Bolt (SAE B)
Pressure 2500 psi
Side Pressure Port SAE -20 (1-1/4")
Side Suction Port SAE -20 (1-1/4")
Rear Pressure Port SAE -16 (1")
Rear Suction Port SAE -16 (1")
