P350 Gear Pump CCW, SAE B, 7/8"-13T Spline

323-9110-523

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1118451

P350 Series Pump 5.1 cubic inch displacement, 3000 psi, 2400 rpm rated. Bi-Rotational, 4 Bolt (SAE B), 7/8"-13T Spline (SAE B), SAE O-Ring Boss Ports

Contact Support

Skip to the end of the images gallery

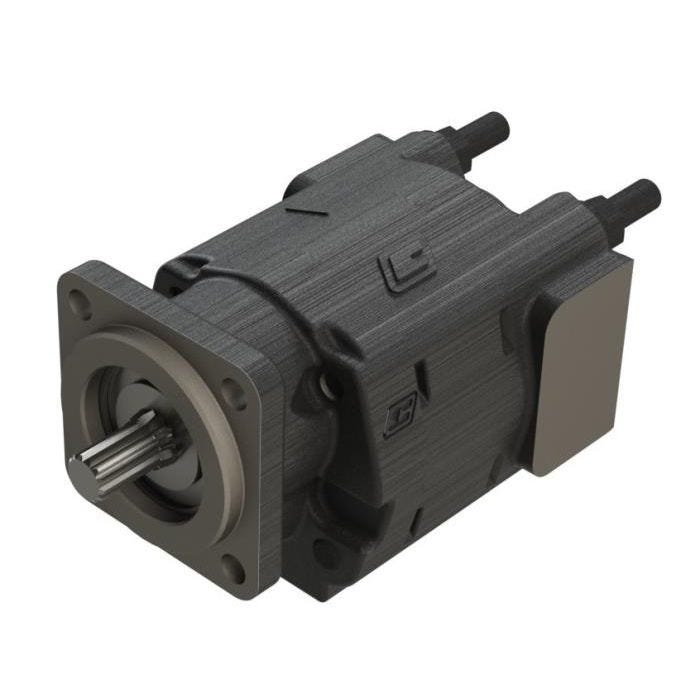

main product photo

Skip to the beginning of the images gallery

* Representative Image

Type	Cast Iron
Series	P350
Part #	323-9110-523
SKU	1118451
Length	12.5 in
Width	6 in
Height	6 in
Weight	56 lb
Rotation	CCW
Port	SAE
Port Location	Rear Port Only
Displacement	5.1 cubic inch
Shaft	7/8"-13T Spline (SAE B)
Mount	4 Bolt (SAE B)
Pressure	3000 psi
Side Pressure Port	SAE -16 (1")
Side Suction Port	SAE -20 (1-1/4")
Rear Pressure Port	SAE -16 (1")
Rear Suction Port	SAE -20 (1-1/4")
