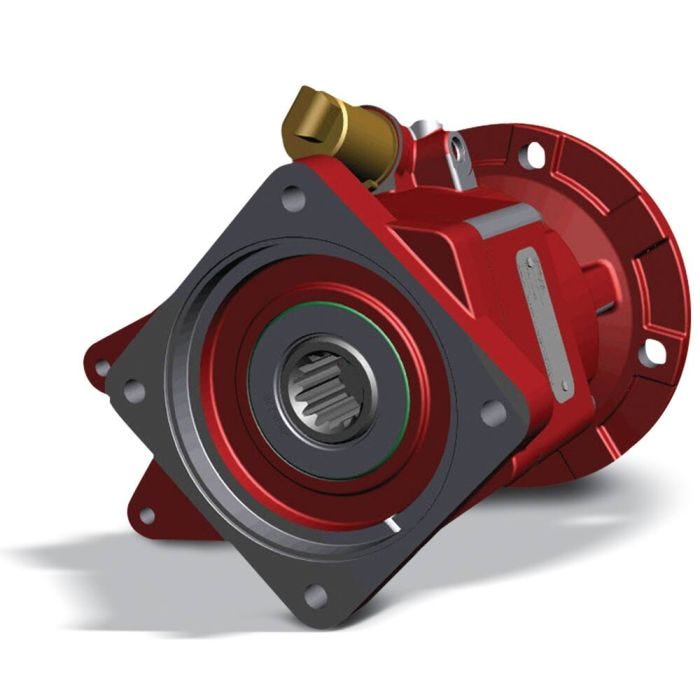

590 Series Rear Mount PowerShift Power Take-Off
Price: *Product only available via Quote Request
Request a Quote
Chelsea 590 Series PTO is designed for Allison TC10 and Caterpillar CX automatic transmissions that offer a rear mount provision. The rear aperture has more room to install pumps than the standard side or top opening. Great option for large pumps.
The 590 Series Power Take-Off (PTO) is designed for Allison TC10 and Caterpillar CX Series automatic transmissions that offer a rear mount provision. The 590 promotes simplified installation because there is no gear backlash to set. The rear aperture affords excellent clearance for larger pump designs. The 590 is available with multiple direct mount pump flanges. Each features a wet spline pump flange option that helps extend the PTO and pump shaft life up to 10 times its normal life expectancy. Also available is a 1410 companion flange driveline output for remote mount driven equipment. The 590 is available in both 12 and 24 volt shift options. With an excellent power to weight ratio, this PTO is an excellent choice for heavy duty applications. Versatility, power, ease of maintenance and installation make the 590 Series the best choice for your vocational truck needs.
Markets:
- Water Drilling
- Vocational & Municipal
- Oil & Gas
- Other Mobile
Features and Benefits:
- Heavy Duty Torque Rating - 650 Lbs-ft [881 Nm]
- Continuous Torque Rating - No need to "de-rate" the PTO
- Wet-Spline Outputs Options Available
- Optimum pump clearance
Applications:
- Fire and Rescue
- Refuse
- Sewer Cleaning
- Oil and Gas
Intermittent Torque:
- 501+ lb-ft
- 501+ Nm
- 650 (Check Application Pages for Actual Torque Ratings) lb-ft
- 881 (Check Application Pages for Actual Torque Ratings) Nm
Mounting Type:
- Rear Mount
Output Shaft Type:
- SAE C
- SAE C 4-Bolt
Output Power:
- 46-55 HP
- 51+ kW
Transmission Manufacturer:
- Allison
- Other
Shift Type:
- Lever
- Mechanical
Shaft Power:
- 500 RPM: 62, 1000 RPM: 124 HP
- 500 RPM: 46, 1000 RPM: 93 kW
Weight:
- 50 lb
- 22.8 kg
Literature and Reference Materials:
- 590 Series Owners's Manual - HY25-1590-M1_US
- 590 Series Parts List - HY25-2590-M1_US
- 590 Series Sales Literature – HY25-0179-B1_US
- Chelsea Power Take-Off (PTO) General Information Catalog
- Chelsea Power Take-Off (PTO) Quick Reference Guide
- Chelsea Power Take-Off (PTO) Stud Kits - HY25-2002-M1_US
- Chelsea Power Take-Off (PTO) Wet Spline Option
- PTO-PNI-254 - New 590 series
- PTO-PNI-255 - New 590 Series for Allison TC10
