2442 Series Front Mount Gear Box

Price: *Product only available via Quote Request
SKU
2442 Series

Request a Quote

To receive more information or request a quote, select the button below and complete our form.

Chelsea 2442 Series PTO is an engine driven crankshaft manual shift PTO. It is available in seven different speed ratios.

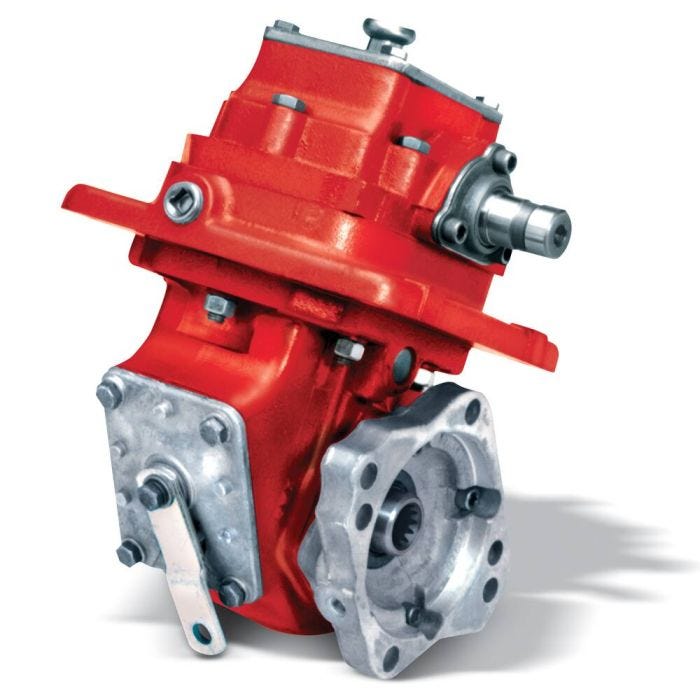

* Representative Image

The Chelsea 2442 Series Gear Box is another example of why Chelsea PTO technology is the best in the business. This front mounted gear box is comprised of the rugged Chelsea 442 and 100 Series PTOs. This unit is designed to operate from the crankshaft of the engine. This economical workhorse features a cast iron housing and tapered cone bearing on the output shaft, giving it a high torque rating and long service life. The space saving air shift cover provides maximum clearance under the truck. Twenty-seven output options including Chelsea's popular 360° rotatable flange, seven internal speed ratios and eleven shift options make this one versatile gearbox. Take advantage of over 65 years of Chelsea PTO technology to increase performance and lower costs.


Markets:

  • Mobile
  • Vocational & Municipal Equipment
  • Other Mobile

Features and Benefits:

  • Live Drive Power
  • Electric/Air shift
  • Speed ratios ranging from 39% to 123% of engine speed
  • Solves Pump fitment issues
  • Two Year Warranty

Applications:

  • Snow & Ice Removal
  • Spreaders
  • Refuse



 Intermittent Torque:
  • 201-300 lb-ft
  • 301-400 Nm
  • 250 (Check Application Pages for Actual Torque Ratings) lb-ft
  • 339 (Check Application Pages for Actual Torque Ratings) Nm

Mounting Type:

  • Crankshaft Driven
  • 6-Bolt

Output Power:

  • 46-55 HP
  • 31-40 kW

Output Shaft Type:

  • 1-1/4" Round
  • 1-1/4" RD w/Key

Transmission Manufacturer:

  • Other

Shift Type:

  • Wire/Cable
  • Mechanical

Shaft Power:

  • 500 RPM: 24, 1000 RPM: 48 HP
  • 500 RPM: 18, 1000 RPM: 36 kW

Weight:

  • 69 lb
  • 31 kg
