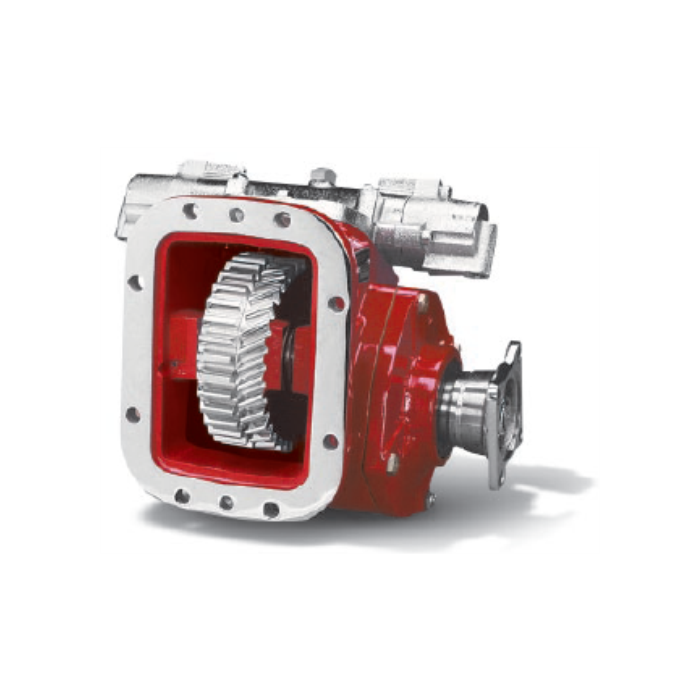

880 Series Mechanical 8-Bolt Power Take-Offs

Chelsea 885 Series is another example of why Chelsea  Power Take-Off (PTO) technology is the best in the vocational truck market. This 8-Bolt PowerShift PTO is a workhorse in the Chelsea PTO product line. It features a cast iron housing and heavy duty ball bearings on the output shaft. The large clutch pack is designed for a torque rating up to 500 lbs-ft providing you with a long service life in heavy duty applications. Two output options, four internal speed ratios, five shift options and our Electric Overspeed Control (EOC) option make this one versatile PTO. Take advantage of Chelsea PTO technology to increase performance and lower costs.

Markets:

• Oil & Gas
• Water Drilling
• Other Mobile

Features and Benefits:

• Rugged cast iron housing
• Designed for Heavy Duty applications
• Pressure Lubrication available
• Two Year Warranty

Applications:

• Oil Field Application
• Bulk Transporter Trucks
• Fire & Rescue

Intermittent Torque:

• 401-500 lb-ft
• 501+ Nm
• 500 (Check Application Pages for Actual Torque Ratings) lb-ft
• 678 (Check Application Pages for Actual Torque Ratings) Nm

Mounting Type:

• 8-Bolt

Output Shaft Type:

• 1410 Companion Flange
• 1-1/2"-10T Spline w/1410 Flange

Output Power:

• 56+ HP
• 51+ kW

Transmission Manufacturer:

• Other
• Eaton/Fuller
• Volvo/Mack
• Allison

Shift Type:

• Hydraulic
• PowerShift (Hydraulic)

Shaft Power:

• 500 RPM: 48, 1000: RPM 95 HP
• 500 RPM: 36, 1000: RPM 71 kW

Weight:

• 88 lb
• 40 kg

Literature and Reference Materials:

• 885 Series Owners Manual - HY25-1240-M1_US
• 885 Series Parts List - HY25-2885-M1_US
• 885 Series Sales Literature - HY25-0119-B1_US
• Chelsea EOC Box Owners Manual - HY25-1650-M1_US
• Chelsea EOC Box Sales Literature - HY25-0096-B1_US
• Chelsea Power Take-Off (PTO) General Information Catalog
• Chelsea Power Take-Off (PTO) Quick Reference Guide
• Chelsea Power Take-Off (PTO) Stud Kits - HY25-2002-M1_US
• PTO-TEC-106 - 912/885 Series Oil Level

Selector Guides:

• Product Guide - Transportation Original Equipment Manufacturer

Compliance, Certifications and Safety:

• Chelsea Power Take-Off (PTO) Safety Information
