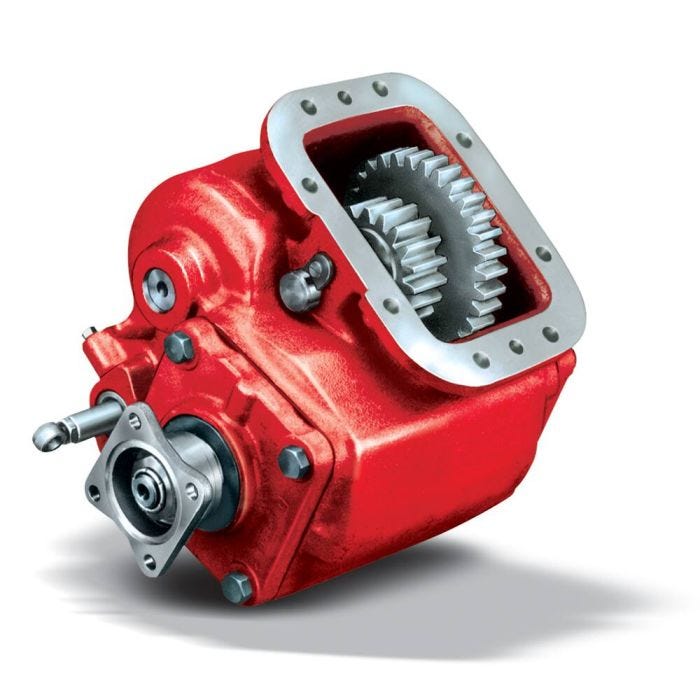

863 Series Mechanical Shift Power Take-Off
Price: *Product only available via Quote Request
Request a Quote
Chelsea 863 Series Power Take-Off (PTO) is a Forward and Reverse PTO that fits most manual transmissions like Mack and Eaton Fuller with an 8-Bolt mounting aperture. This PTO is ideal for large-capacity winches, especially in oil field applications.
Chelsea 863 Series Power Take-Off (PTO) is an example of Chelsea PTO technology solving application requirements for a heavy duty forward and reverse PTO. This rugged workhorse features cast iron housing and heavy duty ball bearings on the output shaft, giving it a high torque rating and long service life. Standard output is 1-1/2” – 10T shaft with a 1410 companion flange. It has a torque ratings up to 500 lbs-ft and is ideal for heavy duty mechanical winch applications. Take advantage of Chelsea PTO technology to increase performance and lower costs for all your application requirements.
Markets:
- Oil & Gas
- Mobile
- Forestry Equipment
Features and Benefits:
- Large coverage for transmissions with 8-Bolt openings
- Lever Shift
- Designed for maximum duty reversible applications
- Two Year Warranty
Applications:
- Oil Field
- Logging
Intermittent Torque:
- 401-500 lb-ft
- 501+ Nm
- 500 (Check Application Pages for Actual Torque Ratings) lb-ft
- 678 (Check Application Pages for Actual Torque Ratings) Nm
Mounting Type:
- 8-Bolt
- Reversible
Output Shaft Type:
- 1410 Companion Flange
- 1-1/2" - 10T Spline w/ 1410 Flange
Output Power:
- 56+ HP
- 51+ kW
Transmission Manufacturer:
- Allison
- Eaton/Fuller
- Volvo/Mack
Shift Type:
- Lever
- Mechanical
Shaft Power:
- 500 RPM: 48, 1000: RPM 95 HP
- 500 RPM: 36, 1000: RPM 71 kW
Weight:
- 96 lb
- 44 kg
Literature and Reference Materials:
- 863 Series - Owners Manual - HY25-1135-M1_US
- 863 Series Parts List - HY25-2863-M1_US
- 863 Series Sales Literature - HY25-0109-B1_US
- Chelsea Power Take-Off (PTO) General Information Catalog
- Chelsea Power Take-Off (PTO) Quick Reference Guide
- Chelsea Power Take-Off (PTO) Stud Kits - HY25-2002-M1_US
