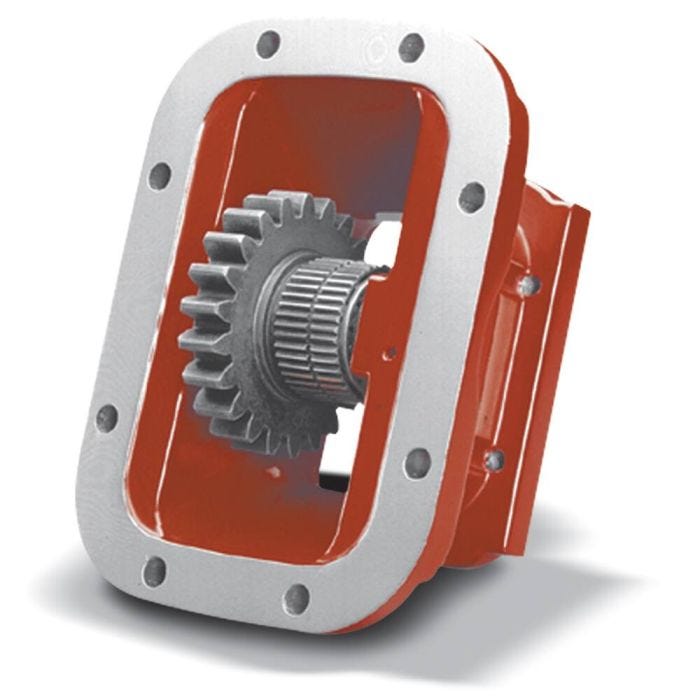

628 Series Geared Adapter
Price: *Product only available via Quote Request
Request a Quote
Chelsea 628 Series geared adapter solves problems when there is a need to change PTO output shaft rotation or clear a mounting obstacle. This adapter is designed to be used when mounting a 6-Bolt PTO to an 8-Bolt transmission PTO opening.
Chelsea 628 Series geared adapter is designed to do the tough jobs you need to get done. The Chelsea tapered bearing design provides maximum load bearing capabilities and eliminates your worries about torque capacity decreasing when using an adapter with your PTO. Whether you need to solve an interference problem or change PTO output shaft rotations, we have what you need.
Markets:
- Aerial
- Construction Equipment
- Forestry Equipment
- Vocational & Municipal Equipment
Features and Benefits:
- 6-Bolt PTO to 8-Bolt Transmission Opening
- Moves the PTO straight out from the transmission
- Uses the same input gears as the 442 and 489 Series
- Two Year Warranty
Applications:
- Snow & Ice Trucks
- Service Trucks
- Dump Truck
- Towing & Recovery Trucks
Intermittent Torque:
- 250 lb-ft
- 339 Nm
Mounting Type:
- 6 Bolt SAE PTO to 8 Bolt SAE Transmission
Geared Adapters
Operating Angle:
- Straight
Weight:
- 18 lb
- 8.2 kg
Literature and Reference Materials:
- 628 Series Parts List - HY25-2626-M1_US
- Chelsea Power Take-Off (PTO) General Information Catalog
- Chelsea Power Take-Off (PTO) Quick Reference Guide
- Chelsea Power Take-Off (PTO) Stud Kits - HY25-2002-M1_US
Compliance, Certifications and Safety:
