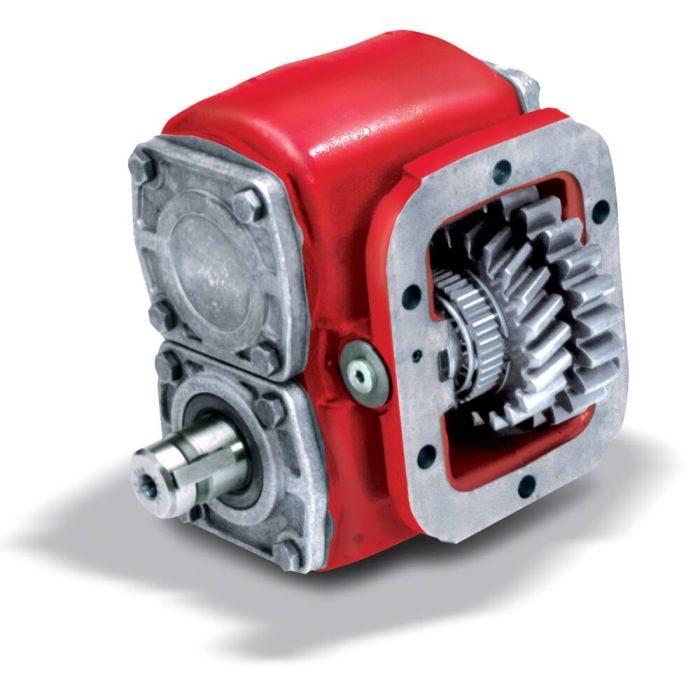

352 Series Mechanical Shift Power Take-Off

The Chelsea 352 Series Power Take-Off (PTO) is designed for forward and reverse applications. This workhorse features cast iron housing and heavy duty tapered bearing on the output shaft, giving it a high torque rating and long service life. Chelsea was the first to provide you with an air shifted forward and reverse speed PTO. The flexible air shift design allows you to mount the air shift cylinder in the best position for maximum clearance. Torque rating up to 140 lbs-ft makes for one versatile PTO in the vocational truck market.

Markets:

• Oil & Gas
• Other Mobile
• On Highway

Features and Benefits:

• Offers faster speeds than the 340 Series
• Designed with tapered roller bearings
• Shift options include wire and air
• Two Year Warranty

Applications:

• Oilfield
• Logging

Intermittent Torque:

• 101-200 lb-ft
• 101-200 Nm
• 140 (Check Application Pages for Actual Torque Ratings) lb-ft
• 190 (Check Application Pages for Actual Torque Ratings) Nm

Mounting Type:

• 6-Bolt
• Reversible

Output Shaft Type:

• 1-1/4" Round
• 1-1/4" RD w/Key

Output Power:

• 26-35 HP
• 20 and below kW

Transmission Manufacturer:

• Volvo/Mack
• Other
• Eaton/Fuller
• Hino
• ZF
• Daimler
• GM

Shift Type:

• Wire/Cable
• Mechanical

Shaft Power:

• 500 RPM: 13, 1000: RPM 27 HP
• 500 RPM: 10, 1000: RPM 20 kW

Weight:

• 37 lb
• 17 kg

Literature and Reference Materials:

• 352 Series - Owners Manual - HY25-1135-M1_US
• 352 Series Parts List - HY25-2352-M1_US
• 352 Series Sales Literature - HY25-0107-B1_US
• Chelsea Power Take-Off (PTO) Stud Kits - HY25-2002-M1_US

Selector Guides:

• Product Guide - Transportation Original Equipment Manufacturer

Compliance, Certifications and Safety:

• Chelsea Power Take-Off (PTO) Safety Information
