340 Series Mechanical Shift Power Take-Off
Price: *Product only available via Quote Request
Request a Quote

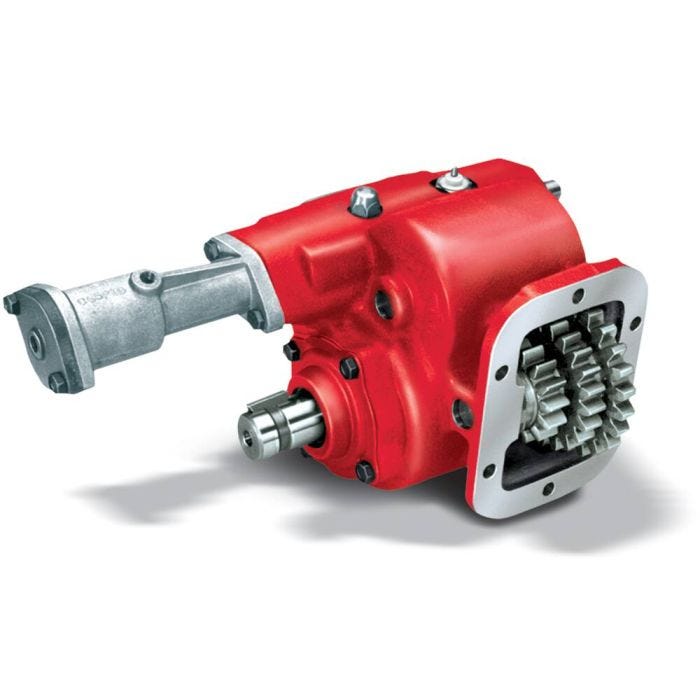

Chelsea 340 Series Power Take-Off (PTO) is ideal for mechanical winch applications or other applications that require two directions of rotation. It fits most manual transmissions with a 6-Bolt aperture. It has a single low-speed forward and reverse.
The Chelsea 340 Series Power Take-Off (PTO) is designed for vocational truck applications requiring a PTO with forward and reverse capabilities. This economical workhorse features a cast iron housing and heavy duty ball bearing on the output shaft, giving it a higher torque rating and longer service life. Chelsea was the first to provide you with an air shifted forward and reverse PTO. Its flexible air shift design allows you to mount the air shift cylinder in the best position for maximum clearance. Torque rating up to 200 lbs-ft makes this one robust durable PTO.
Markets:
- Oil & Gas
- On Highway
- Other Mobile
Features and Benefits:
- Ball bearing output
- Removable cover plate for adjusting backlash
- Rugged cast iron housing
- Two Year Warranty
Applications:
- Oil Field
- Logging
Intermittent Torque:
- 101-200 lb-ft
- 201-300 Nm
- 200 (Check Application Pages for Actual Torque Ratings) lb-ft
- 271 (Check Application Pages for Actual Torque Ratings) Nm
Mounting Type:
- Reversible
- 6-Bolt
Output Shaft Type:
- 1-1/4" Round
- 1-1/4" RD w/Key
Output Power:
- 36-45 HP
- 21-30 kW
Transmission Manufacturer:
- Hino
- GM
- Volvo/Mack
- Eaton/Fuller
- ZF
- Other
Shift Type:
- Lever
- Mechanical
Continuous Torque:
- 300 (Check Application Pages for Actual Torque Ratings) lb-ft
- 407 (Check Application Pages for Actual Torque Ratings) Nm
Shaft Power:
- 500 RPM: 19, 1000 RPM: 38 HP
- 500 RPM: 14, 1000 RPM: 28 kW
Weight:
- 32 lb
- 15 kg
Literature and Reference Materials:
- 340 Series - Owners Manual - HY25-1135-M1_US
- 340 Series Parts List - HY25-2340-M1_US
- 340 Series Sales Literature - HY25-0106-B1_US
- Chelsea Power Take-Off (PTO) General Information Catalog
- Chelsea Power Take-Off (PTO) Quick Reference Guide
- Chelsea Power Take-Off (PTO) Stud Kits - HY25-2002-M1_US
- PTO-TEC-102 - New Bearing Cap for 340 Series
