290 Series Mechanical Shift Power Take-Off
Price: *Product only available via Quote Request
Request a Quote

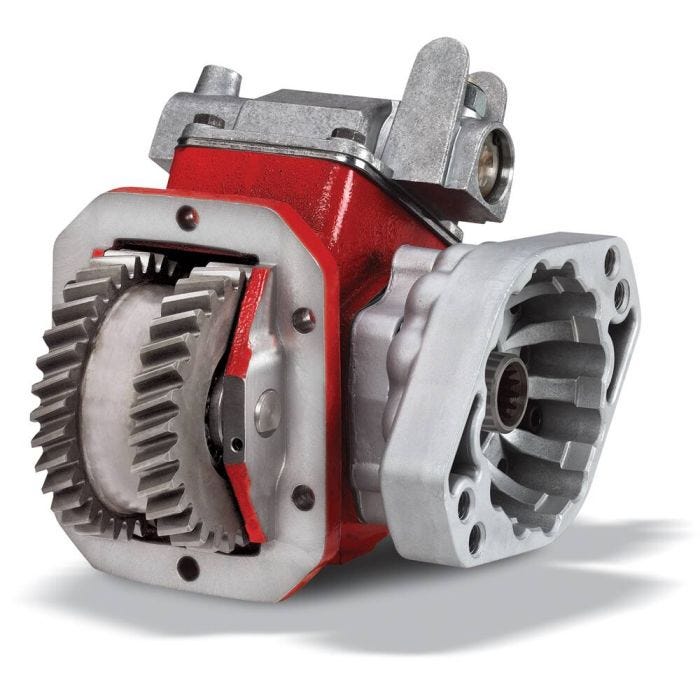

Chelsea 290 Series Power Take-Off (PTO) is designed with a deep reach input gear for mounting to some Eaton Fuller, ZF, and Mack transmissions. It mounts directly to the transmission – no separate geared adapter necessary.
The Chelsea 290 Series Power Take-Off (PTO) is another innovative design that meets customer requirements in the vocational truck market. This economical workhorse features a cast iron housing and tapered cone bearing on the output shaft, giving it a high torque rating and long service life. The deep reach gear design allows it to mount to Eaton Fuller 4106 transmissions and Mack T2060A transmissions without the need for special adapters. The space saving air shift cover provides maximum clearance under the truck. The 290 Series features fourteen output options which includes our popular 360° rotatable flange that will provide you with optimum pump clearance. Three internal speed ratios and six shift options make this one versatile PTO. Take advantage of Chelsea PTO technology to increase performance and lower costs.
Markets:
- Aerial
- On-Highway
- Other Mobile
- Vocational & Municipal
Features and Benefits:
- Deep reach housing design eliminates the need for special adapters
- Rugged cast iron housing
- Torque ratings up to 175 lbs-ft
- Two Year warranty
Applications:
- Aerial
- Snow & Ice Removal
- Fire and Rescue
- Dump Truck and Trailer
- Service Trucks
Intermittent Torque:
- 101-200 lb-ft
- 201-300 Nm
- 175 (Check Application Pages for Actual Torque Ratings) lb-ft
- 237 (Check Application Pages for Actual Torque Ratings) Nm
Mounting Type:
- 6-Bolt
Output Shaft Type:
- 1-1/4" Round
- 1-1/4" RD w/Key
Output Power:
- 26-35 HP
- 21-30 kW
Transmission Manufacturer:
- ZF
- Other
- Eaton/Fuller
- Volvo/Mack
Shift Type:
- Mechanical
Shaft Power:
- 500 RPM: 17, 1000: RPM 33 HP
- 500 RPM: 12, 1000: RPM 25 kW
Weight:
- 37 lb
- 16.8 kg
Literature and Reference Materials:
- 290 Series - Owners Manual - HY25-1135-M1_US
- 290 Series Parts List - HY25-2290-M1_US
- 290 Series Sales Literature - HY25-0104-B1_US
- Chelsea Power Take-Off (PTO) General Information Catalog
- Chelsea Power Take-Off (PTO) Quick Reference Guide
- Chelsea Power Take-Off (PTO) Stud Kits - HY25-2002-M1_US
