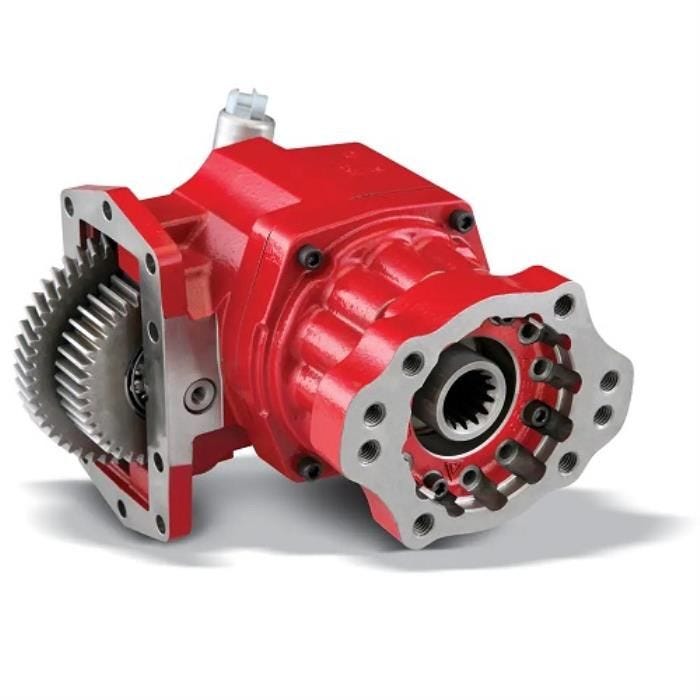

281 Allison Pressure Lube 12V Hydraulic Valve
281GDFJP-B8RY
Shipping Availability
Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Select a location to pick up to see availaility
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1204966
281 Series for Allison Transmission with Pressure Lube, 12V Hydraulic Valve and 8T Spline, DIN 5462 Rotatable in a 8 arrangement
| Part # | 281GDFJP-B8RY |
| SKU | 1204966 |
| Length | 14 in |
| Width | 12.5 in |
| Height | 15.75 in |
| Weight | 49 lb |
| Shift Type | 12V Hydraulic Valve |
| PTO Output Mount | DIN 5462 Rotatable |
| Assembly Arrangement | 8 - Gear Forward - Shaft Rear |
| Continuous HP (1000rpm) | 74 HP (56 Kw) |
| Continuous HP (500rpm) | 37 HP (28 Kw) |
| Intermittent HP (1000rpm) | 74 HP (56 Kw) |
| Intermittent HP (500rpm) | 37 HP (28 Kw) |
| Continuous Torque | 390 Ft-Lb |
| Gear Ratio | 28/47 |
| Input Option | Allison Transmission |
| Lube Option | Pressure Lube |
| Output Shaft | 8T Spline |
| PTO Series | 281 Series PTO |
| Transmission Mount | Standard Mount |
