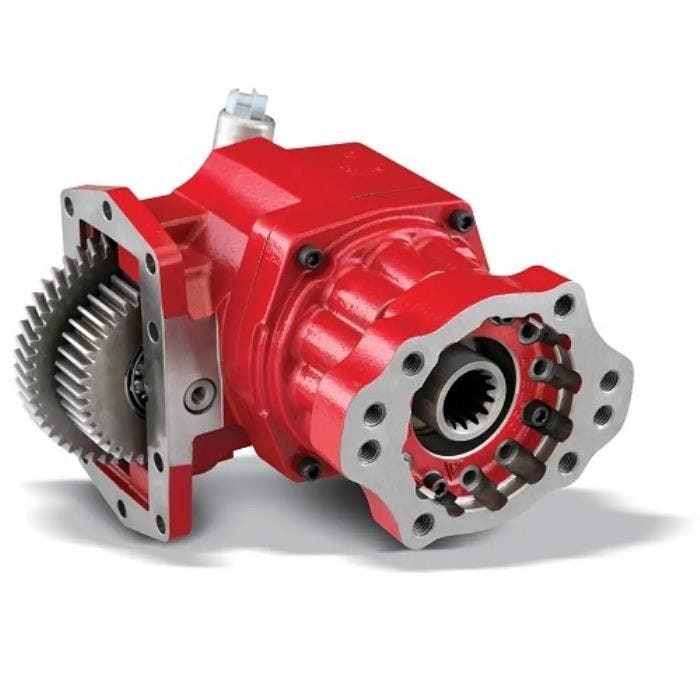

281 Allison Pressure Lube 24V Hydraulic Valve
281GCFJP-D5RK
Shipping Availability
Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Select a location to pick up to see availaility
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1204917
281 Series for Allison Transmission with Pressure Lube, 24V Hydraulic Valve and 13T Spline, 2/4 SAE B Rotatable in a 5 arrangement
| Part # | 281GCFJP-D5RK |
| SKU | 1204917 |
| Length | 14 in |
| Width | 12.5 in |
| Height | 15.75 in |
| Weight | 49 lb |
| Shift Type | 24V Hydraulic Valve |
| PTO Output Mount | 2/4 SAE B Rotatable |
| Assembly Arrangement | 5 - Gear Forward - Shaft Rear - Bulge Up RS - Bulge Down LS |
| Continuous HP (1000rpm) | 78 HP (58 Kw) |
| Continuous HP (500rpm) | 39 HP (29 Kw) |
| Intermittent HP (1000rpm) | 78 HP (58 Kw) |
| Intermittent HP (500rpm) | 39 HP (29 Kw) |
| Continuous Torque | 410 Ft-Lb |
| Gear Ratio | 25/47 |
| Input Option | Allison Transmission |
| Lube Option | Pressure Lube |
| Output Shaft | 7/8"-13T Spline |
| PTO Series | 281 Series PTO |
| Transmission Mount | Standard Mount |
