210 PTO Diesel Upfitter + Overspeed Module P315 Pump

210FMMFP-UM409

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1172586

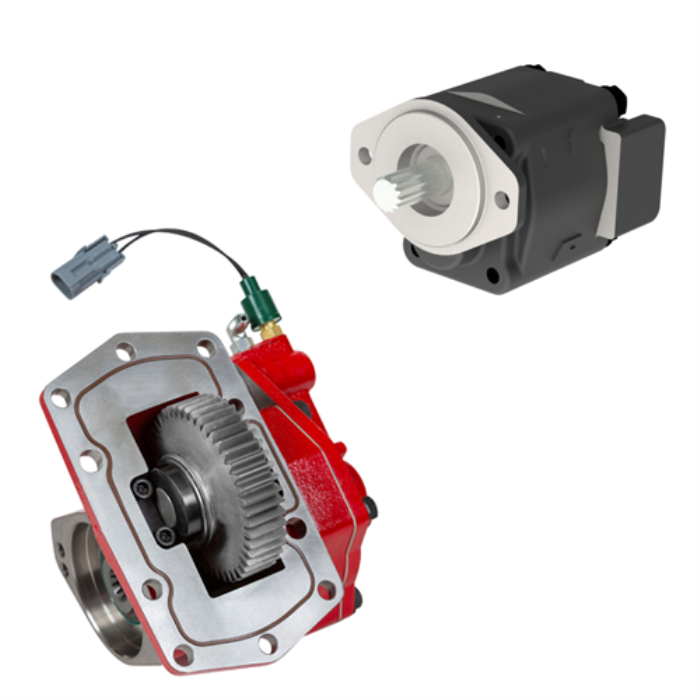

Parker Chelsea 210 Series PTO for the Ford Diesel 4X4 or 4X2 F350-600 Model Year 2020 and on with the 10R140 transmission. This PTO has a 144% output, 2 Bolt (SAE A) pump mount with a 7/8"-13T Spline (SAE B) shaft. A 2.17 cubic inch P315 series cast iron pump included with a rear (SAE -16 (1")) pressure port and a (SAE -20 (1-1/4")) suction port that will produce 18.9 gpm at 1400 rpm engine speed. This PTO/Pump combo comes with an Upfitter Switch Harness to interface directly with your OEM switch package as well as the FORCE America PTO module with overspeed protection as well as mobile and stationary modes.

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

* Representative Image

Details

Part #	210FMMFP-UM409
SKU	1172586
Length	10 in
Width	7 in
Height	6 in
Weight	51 lb
Product Series	P315
Engine Type	Diesel
Drive Type	4X4 or 4X2
Shift Type	12V Elec/Hyd
Output Rotation	CCW
Displacement	2.17 cubic inch
Displacement Range	2-4 cubic inch
Output Ratio	144%
PTO Output Mount	7/8"-13T Spline (SAE B)
Pump Mount	2 Bolt (SAE A)
Rear Pressure Port	SAE -16 (1")
Rear Suction Port	SAE -20 (1-1/4")
Harness	UM - Upfitter + Overspeed Module
