UK6-40-12VDC-FRM
Price: *Product only available via Quote Request
SKU
UK6-40
Request a Quote
To receive more information or request a quote, select the button below and complete our form.

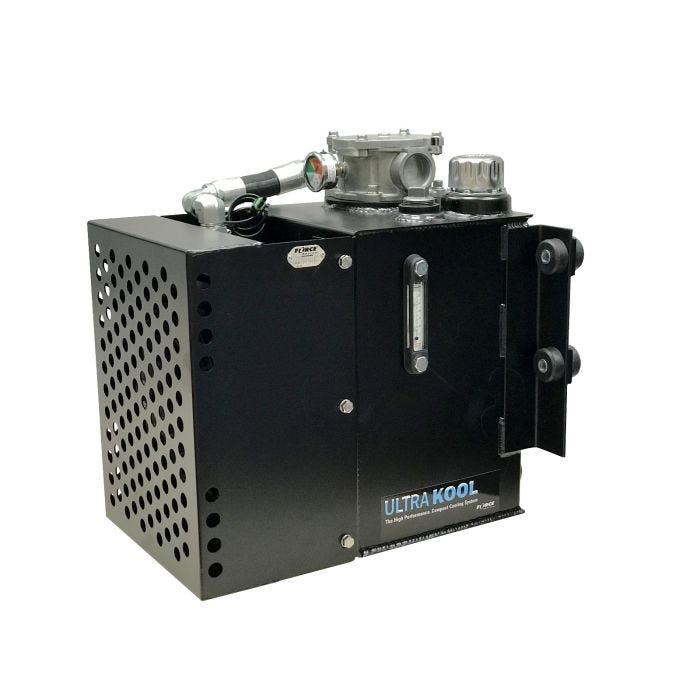

The Ultra-Kool is a compact hydraulic reservoir, filter and cooler system. The frame isolation mounts make this perfect for severe applications. Typical applications include: fertilizer tenders, petroleum trucks, seed conveyors, feed body trailers, and water tanks.
The Ultra-Kool includes the following items:
- 40 GPM oil cooler with 12vdc electric fan
- 6 gallon reservoir
- High flow integral 10 micron filter with 25 PSI bypass
- 40 Micron filler-breather
- Sight level-temperature gauge
- Filter element condition indicator gauge
- 2” NPT suction ports (2)
- #16 ORB Return Port
- 1 1/4“ NPT port for available level/temp sensor (not included)
- 2” Male NPT 100 mesh suction strainer with 3 psi bypass rated for 26 GPM at 5 ft./second
- Powder coated steel construction
- Weight: 95lbs
- Cab mounting brackets available
