Winner by Danfoss WH004 Series Rubber Hydraulic Braided Hose

WH004-40-100

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1184644

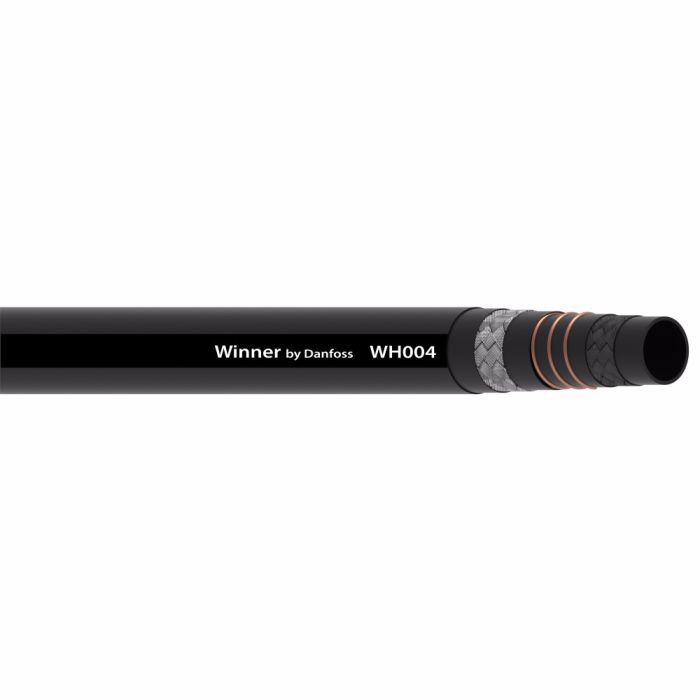

Winner by Danfoss WH004 Series Rubber Hydraulic Braided Hose -40 (2-1/2"), Working Pressure 60 psi. Sold by the foot.

Contact Support

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

* Representative Image

Type	Hydraulic Hose
Series	WH004
Part #	WH004-40-100
SKU	1184644
Length	12 in
Width	3.02 in
Height	3.02 in
Weight	1.38 lb
Hose Size	-40 (2-1/2")
Hose Application	Hydraulic Suction Hose
Dash Size	-40 (2-1/2")
Working Pressure	60 psi
Burst Pressure	240 psi
Bend Radius (Minimum)	5.51
Working Temperature	-40 to 212 Deg
Material	Synthetic Rubber
Inside Diameter	1
Outside Diameter	3.02
