Winner by Danfoss WH004 Series Rubber Hydraulic Braided Hose

WH004-20-100

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1182527

Winner by Danfoss WH004 Series Rubber Hydraulic Braided Hose -20 (1-1/4"), Working Pressure 205 psi. Sold by the foot.

Contact Support

Skip to the end of the images gallery

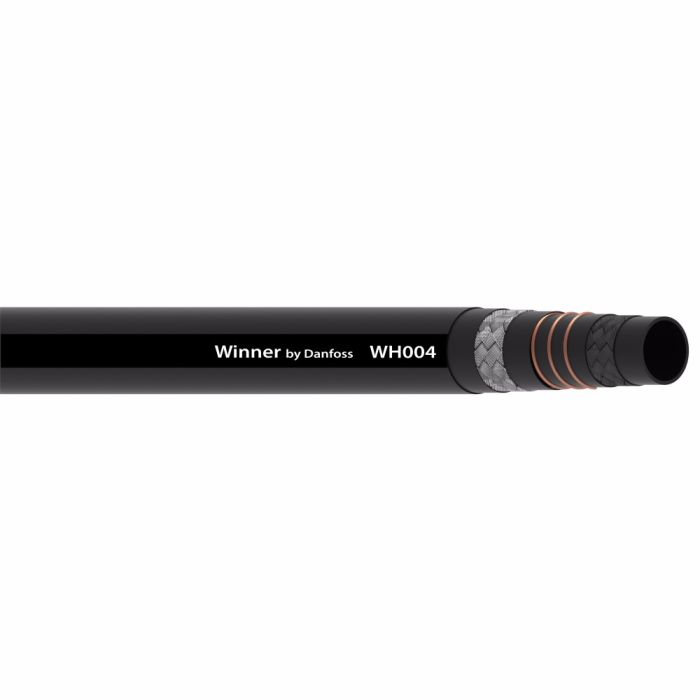

main product photo

Skip to the beginning of the images gallery

* Representative Image

Type	Hydraulic Hose
Series	WH004
Part #	WH004-20-100
SKU	1182527
Length	12 in
Width	1.69 in
Height	1.69 in
Weight	0.57 lb
Hose Size	-20 (1-1/4")
Hose Application	Hydraulic Suction Hose
Dash Size	-20 (1-1/4")
Working Pressure	205 psi
Burst Pressure	820 psi
Bend Radius (Minimum)	2.36
Working Temperature	-40 to 212 Deg
Material	Synthetic Rubber
Inside Diameter	1
Outside Diameter	1.69
