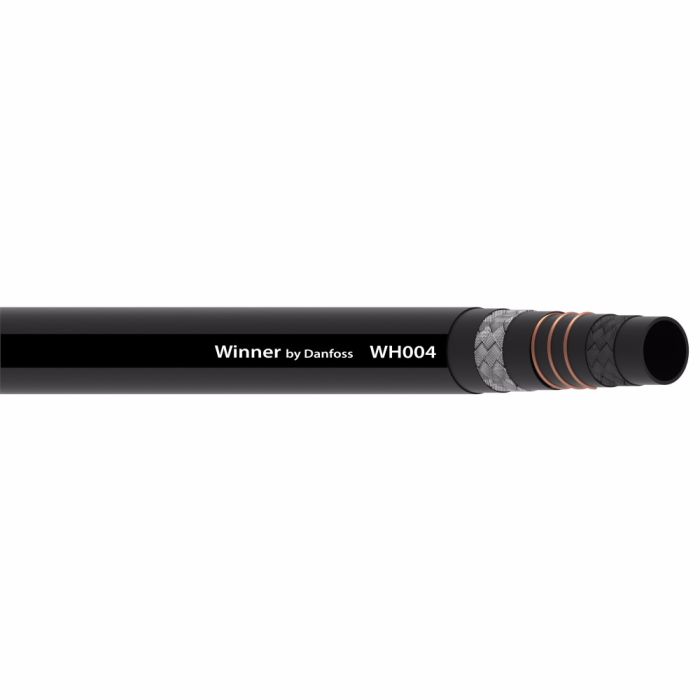

Winner by Danfoss WH004 Series Rubber Hydraulic Braided Hose
WH004-16-100
Shipping Availability
Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Select a location to pick up to see availaility
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1184641
Winner by Danfoss WH004 Series Rubber Hydraulic Braided Hose -16 (1"), Working Pressure 245 psi. Sold by the foot.
| Roll Length | 100 FT |
| Type | Hydraulic Hose |
| Series | WH004 |
| Part # | WH004-16-100 |
| SKU | 1184641 |
| Length | 12 in |
| Width | 1.43 in |
| Height | 1.43 in |
| Weight | 0.46 lb |
| Hose Size | -16 (1") |
| Hose Application | Hydraulic Suction Hose |
| Dash Size | -16 (1") |
| Working Pressure | 245 psi |
| Burst Pressure | 980 psi |
| Bend Radius (Minimum) | 1.77 |
| Working Temperature | -40 to 212 Deg |
| Material | Synthetic Rubber |
| Inside Diameter | 1 |
| Outside Diameter | 1.43 |
