Code 61 Split Flange Straight

12Z-G16

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1126119

Crimping Service

Yes - Crimp on the hose for me. + $5.00

No - I will crimp it myself.

Additional Instructions:

Maximum 2500 characters

Qty

Danfoss Weatherhead 12Z-G16 -16 (1") SAE Code 61 Split Flange Z Series Split Flange Straight SAE Code 61 for use with -12 (3/4") H280 or EC215 hose.

Contact Support

Skip to the end of the images gallery

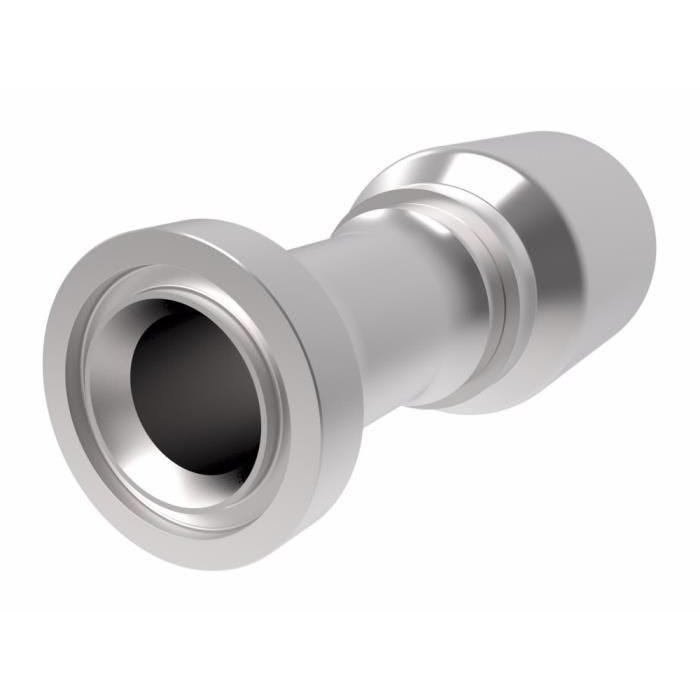

main product photo

Skip to the beginning of the images gallery

* Representative Image

Type	Hydraulic Hose End
Series	Z Series
Part #	12Z-G16
SKU	1126119
Length	3.31 in
Width	1.75 in
Height	1.75 in
Weight	0.6 lb
Compatibility	H280 or EC215
Connection	SAE Code 61 SF
Connection Size	-16 (1")
Hose Size	-12 (3/4")
Configuration	Flange
Orientation	Straight
