CAT Flange 22.5 Elbow

4S20CTD16

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each

SKU

1152085

Crimping Service

Yes - Crimp on the hose for me. + $5.00

No - I will crimp it myself.

Additional Instructions:

Maximum 2500 characters

Qty

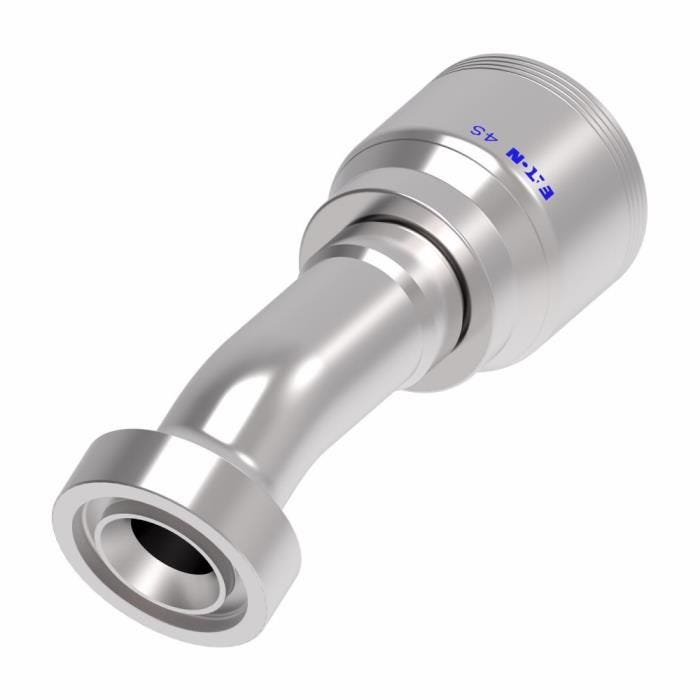

Eaton Weatherhead 4S20CTD16 -20 (1-1/4") CAT Flange 4S CAT Flange 22.5 Degree Flange for use with -16 (1") H430 hose.

Contact Support

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

* Representative Image

Type	Hydraulic Hose End
Series	4S Series
Part #	4S20CTD16
SKU	1152085
Length	6.48 in
Width	0.7 in
Height	2.08 in
Weight	2.6 lb
Compatibility	H430
Connection	CAT Flange
Connection Size	-20 (1-1/4")
Hose Size	-16 (1")
Configuration	Flange
Orientation	22.5 Deg
