Welded Cross Tube Cylinder, 1.5" Bore

FAWT-150-180-100-4

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each

SKU

1131416

Welded Cross Tube Cylinder, 1-1/2 Inch Bore with a 18 inch stroke and 26 inch retracted length, overall extended length of 44 inches. Rated for 2,500 psi, this cylinder includes SAE -08 (1/2") ports and a 1 inch rod with a 0.75 inch clevis and clevis pin and is rated at a 4,800 lb column load.

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

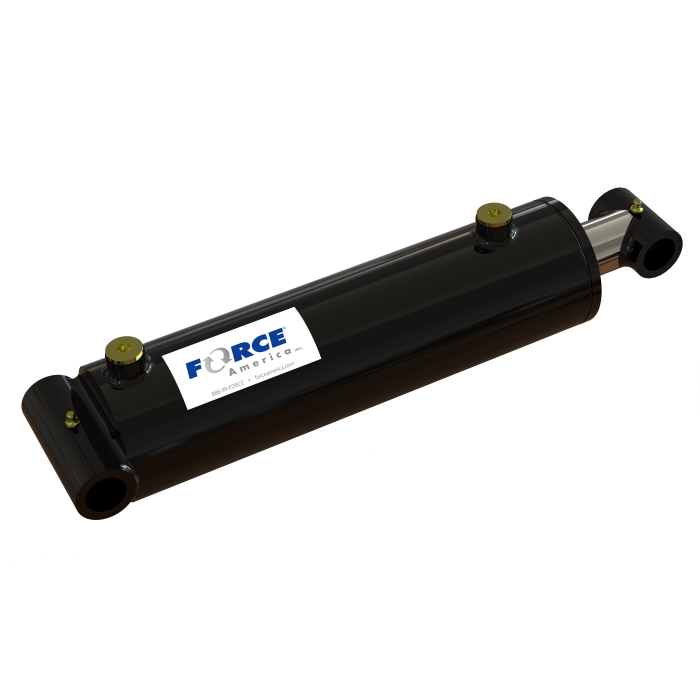

* Representative Image

Details

Series	1.5" Bore
Type	Welded
Part #	FAWT-150-180-100-4
SKU	1131416
Length	30.25 in
Width	2.5 in
Height	2.75 in
Weight	21 lb
Bore	1.5"
Stroke	18"
Retracted	26"
Extended	44"
Mount	Cross Tube
Pin	0.75"
Port Type Size	SAE -08 (1/2")
Rod	1"
Pressure	3,000 psi
