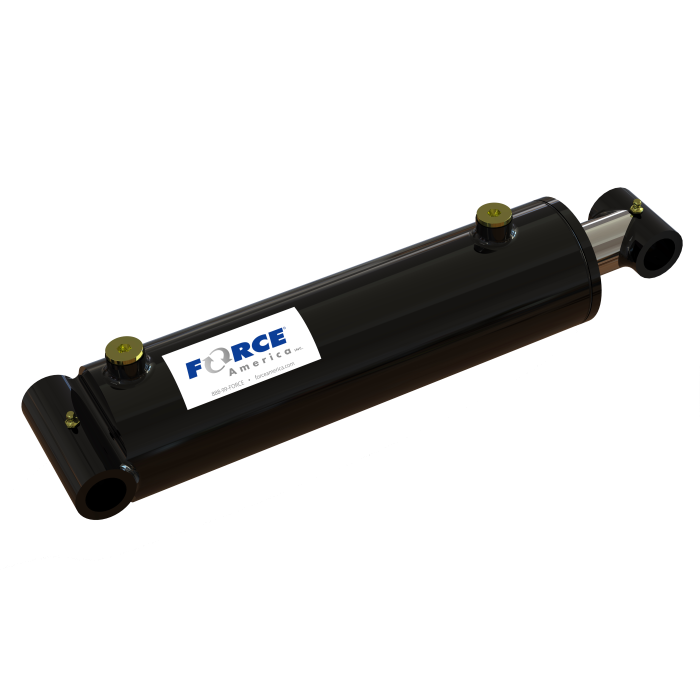

Welded Cross Tube Cylinder, 1.5" Bore
FAWT-150-080-100-4
Shipping Availability
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.

SKU
1131411
Welded Cross Tube Cylinder, 1-1/2 Inch Bore with a 8 inch stroke and 16 inch retracted length, overall extended length of 24 inches. Rated for 2,500 psi, this cylinder includes SAE -08 (1/2") ports and a 1 inch rod with a 0.75 inch clevis and clevis pin and is rated at a Full column load.
Series | 1.5" Bore |
Type | Welded |
Part # | FAWT-150-080-100-4 |
SKU | 1131411 |
Length | 20.25 in |
Width | 2.5 in |
Height | 2.75 in |
Weight | 15 lb |
Bore | 1.5" |
Stroke | 8" |
Retracted | 16" |
Extended | 24" |
Mount | Cross Tube |
Pin | 0.75" |
Port Type Size | SAE -08 (1/2") |
Rod | 1" |
Pressure | 3,000 psi |
